Availability:
Shipping & Returns: Free Shipping. All The Time.
|
Magnification
|
28
|
|
Objective Lens Focal Length(mm)
|
840
|
|
Objective Lens Diameter(mm)
|
150
|
|
Objective Lens Type
|
Doublet Normal Lens
|
|

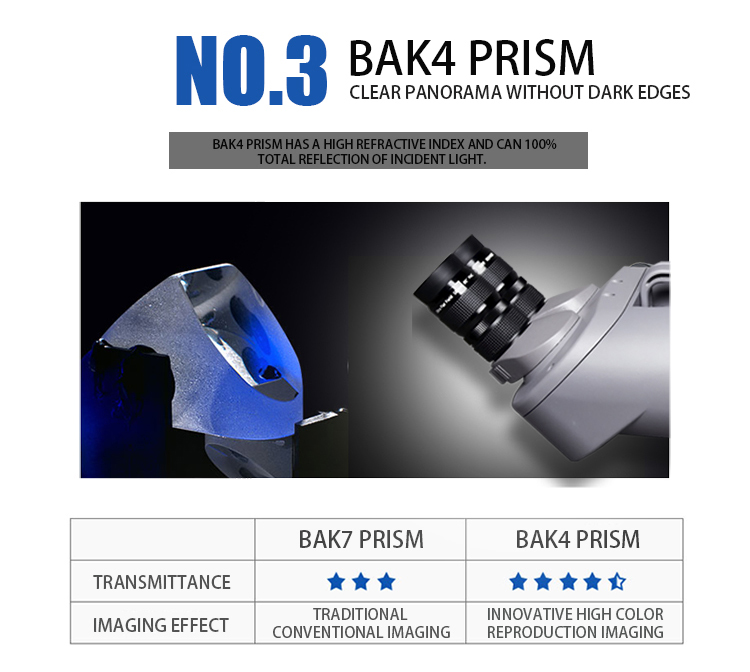

Prism type and effective light aperture
|
Off-axis roof prism(40mm Passage aperture)
|
|
Eyepiece Focal Length(mm)
|
30(Contact glass caliber 40mm)
|
|
Eyepiece Lens Structure(#Elements/# Groups)
|
9/5(Ultra Flat Field Design)
|
|
Real Field of View
|
2.7°
|
|
Apparent Field of View
|
75°
|
|
Field of View(m/1000m)
|
47
|
|
Field of View(ft/1000yds)
|
141
|
|
Exit Pupil(mm)
|
5.4
|
|
Relative Brightness
|
29.2
|
|
Eye Relief(mm)
|
22
|
|
Interpupillary distance
|
62-76
|
|
Minimum Focusing Distance(m)
|
40
|
|
Length(mm)
|
860(Telescopic hood)
|
|
Width(mm)
|
370
|
|
Height(mm)
|
235
|
|
Weigh(kg)
|
20(magnesium alloy)/ 24(Aluminum alloy)
|
