Specification

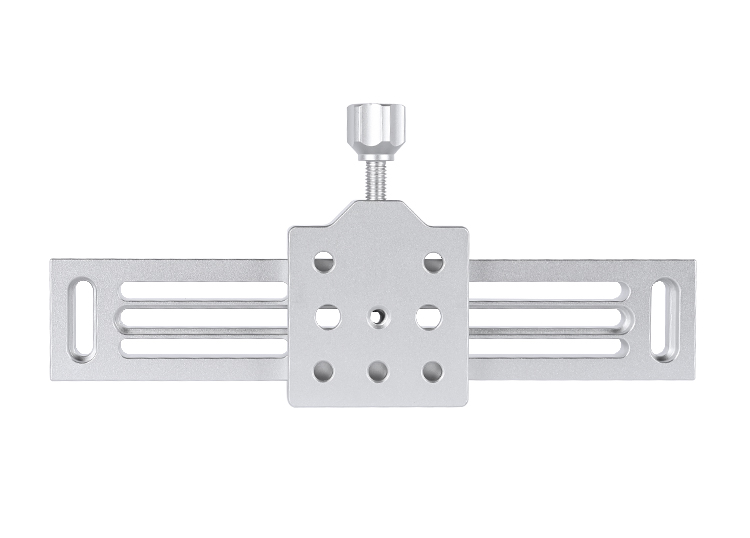

OSL-213 Multifunctional Guide Star Dovetail Mounting Plate Handle Bracket for Astronomical Telescope Monocular

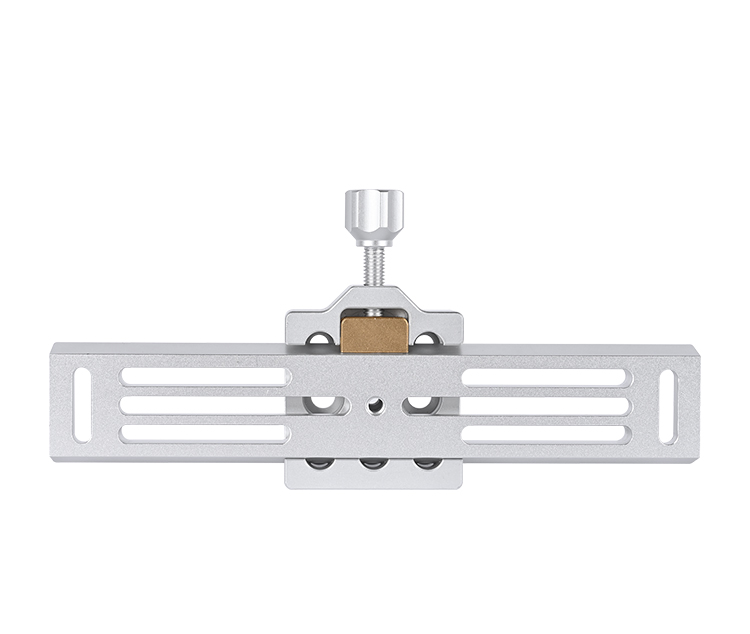

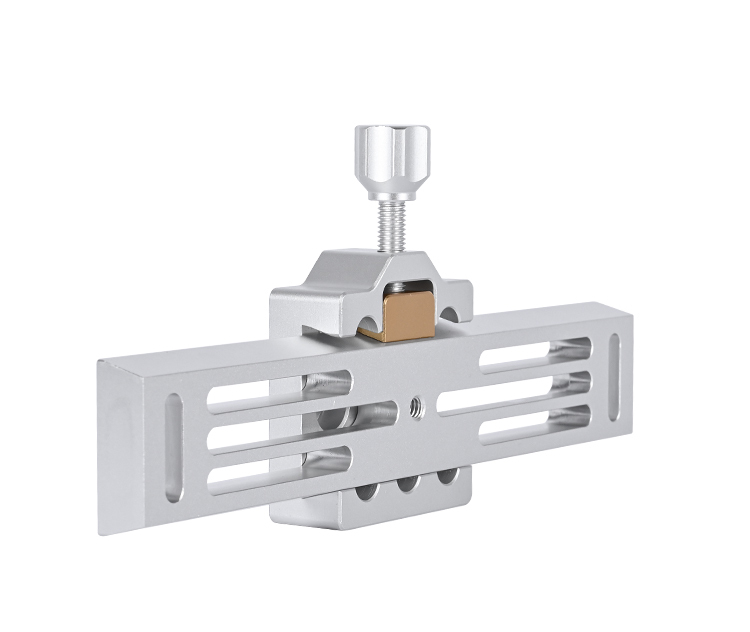

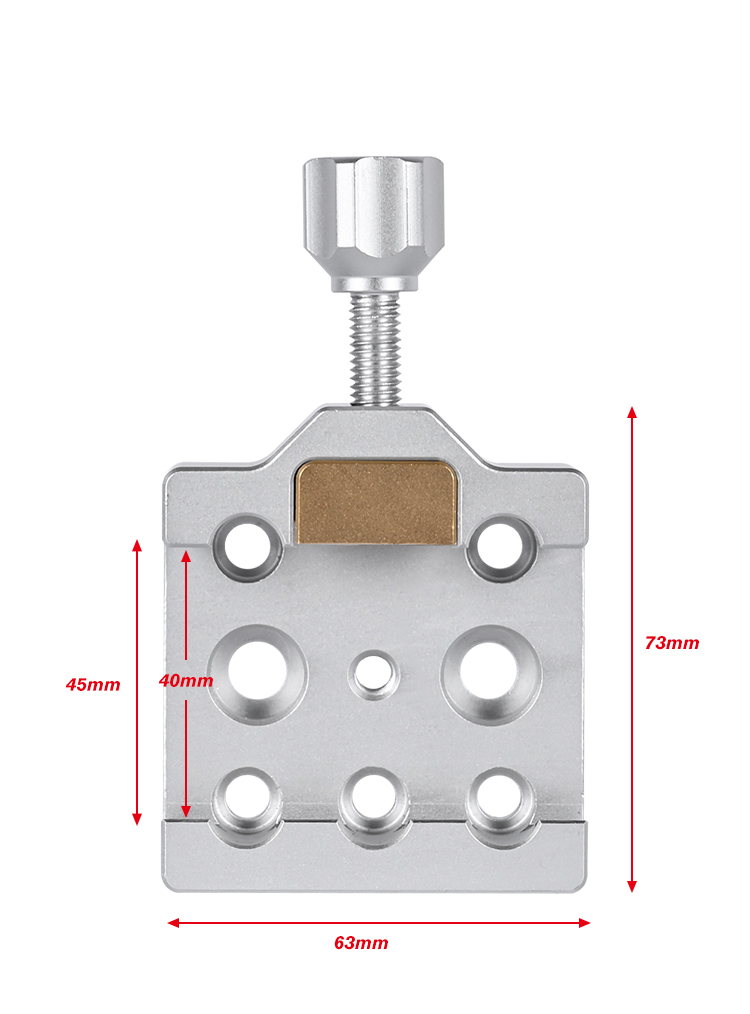

This metal mounting plate can be used to mount your telescopes or spotting scopes to tripod head and guide star dovetail mounting plate handle bracket with dovetail fixing 1.OSEELANG Middle-Sizes Dovetail Clamp for Telescopes w/ Brass Screws Silver 2.Simply screw the dovetail clamp onto your tripod head, and you can mount your telescope on the tripod. 3.A generously dimensioned surface with 24 mm width presses the bar against the other side of the clamp. 4.Areal clamping with brass screws and locking screws - protects the accessories and provides a very stable connection. 5.The center distance of two holes for M8 screws is 35 mm 6.For attaching the clamp, 7 bores are available, five bores for M6 and 1/4" screws, two bores for M8 screws. 7.The clamp itself can be adapted to a mount, to the counterweight shaft or another dovetail bar, building a double connection 8.100% Brand new and never used All-metal structure, the use of precision aluminum Multifunctional Guide Star Dovetail Mounting Plate Handle Bracket for Astronomical Telescope Monocular Features: 100% Brand new

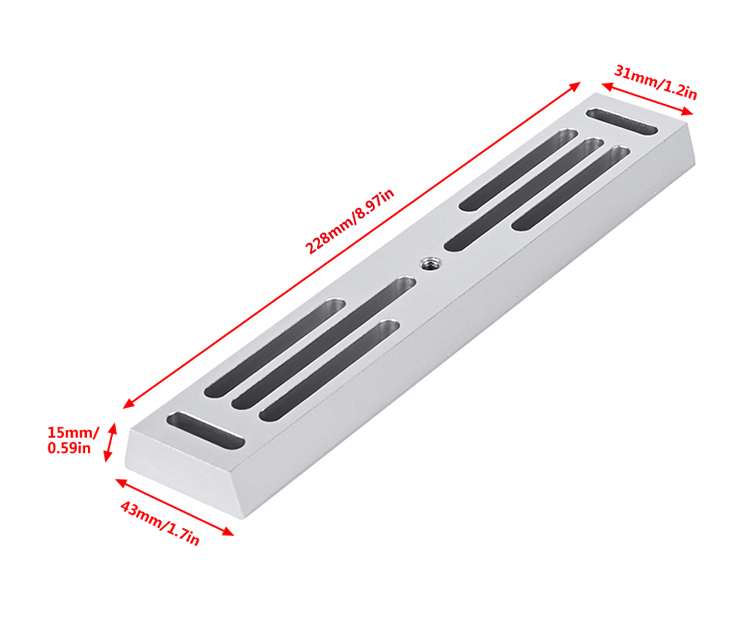

and never used All-metal structure, the use of precision aluminum 1/4 standard screw thread Length: 228mm Width (bottom): 43mm Width (top): 31mm Height: 15mm Net Weight: 250g |
|
