Product parameters:
|
Model
|
EP635
|
Resolution, pixels
|
640×480
|
|
detector type
|
uncooled focal plane
|
field of view
|
17.7°*13.3°
|
|
Frame Rate, Hz
|
50HZ
|
focal length
|
35mm
|
|
base magnification
|
1.38x
|
Focus range
|
1m~∞
|
|
NETD
|
＜50mk@30℃
|
frame rate
|
50HZ
|
|
Focus method
|
Manual focus
|
Electronic zoom
|
2X，3X，4X
|
|
PIP
|
support
|
Probabilistic ranging
|
support
|
|
wavelength range
|
8-14μm
|
image transmission
|
WiFi real-time image transmission
|
|
crosshair
|
support
|
Hotspot Tracking
|
support
|
|
laser pointer
|
support
|
monitor
|
Color Lcos1280*960 (eyepiece diopter adjustable)
|
|
image polarity
|
black hot, white hot, red hot, iron red
|

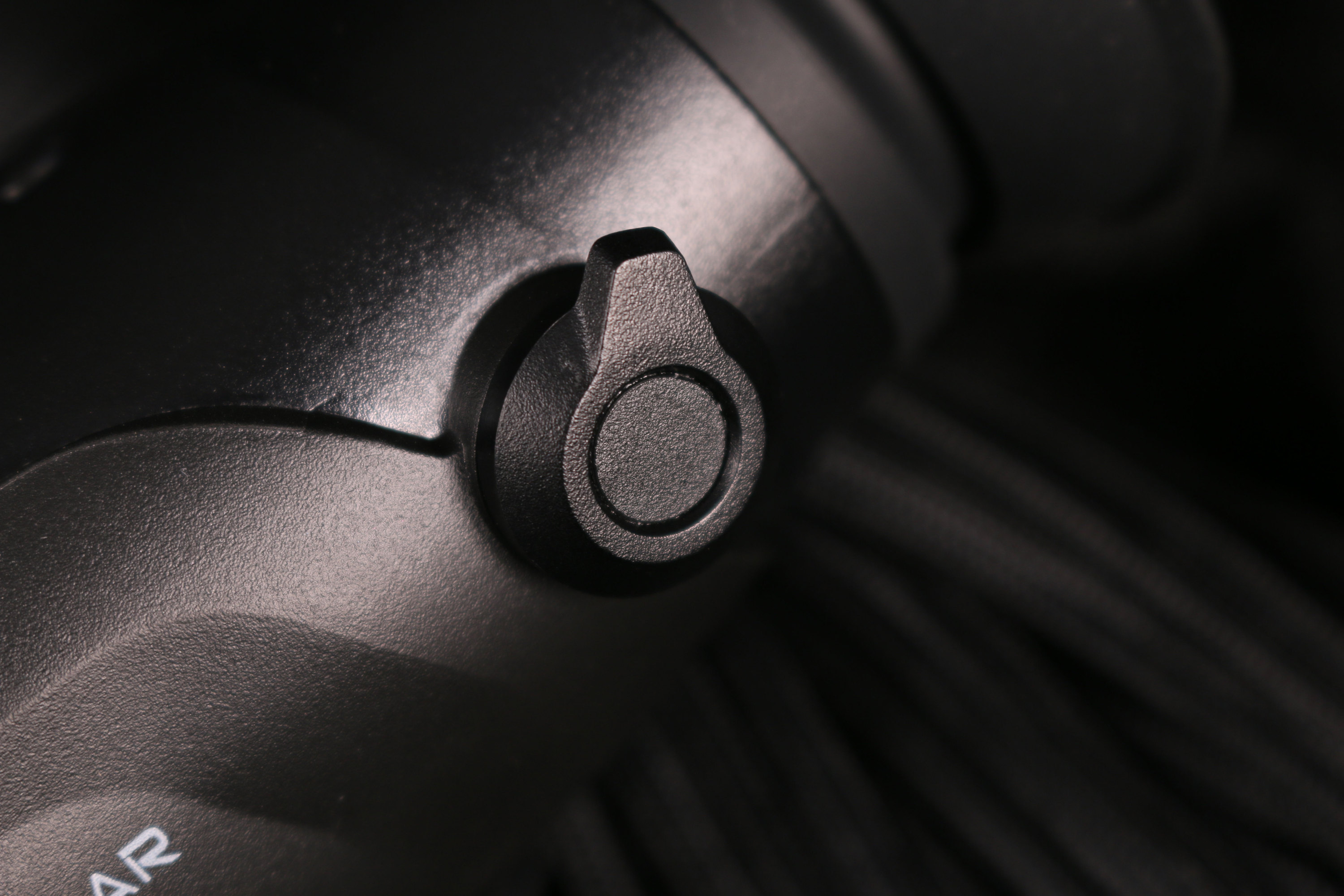

diopter adjustment
|
Adjust by knob
|
|
Battery Type
|
Lithium battery, rechargeable
|
battery working time
|
4 hours of continuous work
|
|
charging type
|
Support USB charging, can be powered by external power bank
|
External power supply
|
DC5V/2A（Micro USB）
|
|
Operating temperature
|
-20℃- +50℃
|
storage temperature
|
-40℃- +60℃
|
|
storage temperature
|
IP66
|
fall
|
1 M
|
|
weight
|
0.45kg
|
size
|
200*71*71mm
|
|
Power interface
|
support
|
video output
|
PAL
|
|
USB
|
External charging
|
||
Product Features:
★1280*960 HD display ★Automatic hotspot tracking ★Laser pointer ★50Hz high frame rate
★Multiple image modes ★Probabilistic ranging ★Cross cursor ★Lision II Smart Image
Product Description:

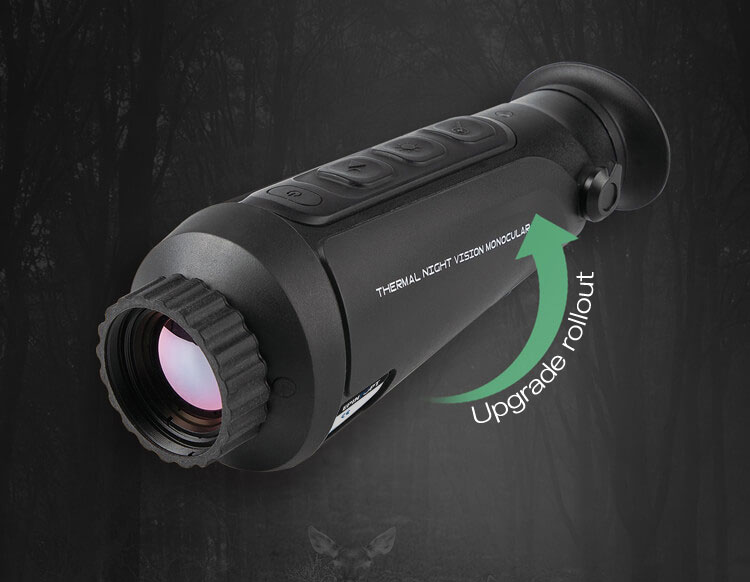

S25X II Series Infrared Telescopes
Huanxin upgraded high-sensitivity infrared detector, 640*480pixels, LisionⅡ intelligent image algorithm, 50Hz high frame rate

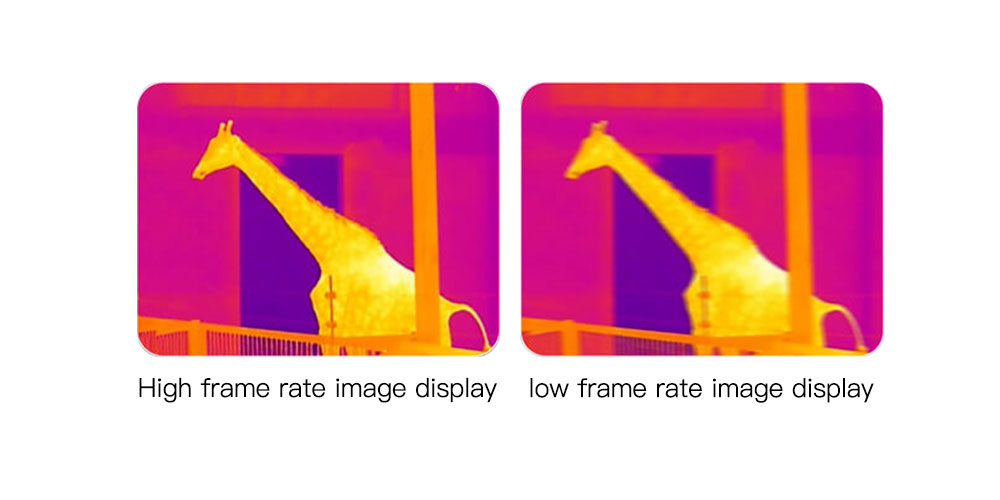

50Hz high frame rate, sensitive and smooth
Comfortable and high-quality moving target observation experience Dynamic picture capture without delay
Uncooled Infrared Array Sensor - 17μm
Using the core technology of independent and controllable design and manufacturing process, it provides products with 17um pixels and 640×480 area array resolution specifications. It has been widely used in various infrared temperature measurement and imaging monitoring fields such as industrial online temperature measurement, equipment over-temperature alarm, human body temperature measurement and screening, handheld instruments, fire monitoring and alarm, perimeter protection, intrusion alarm, etc.

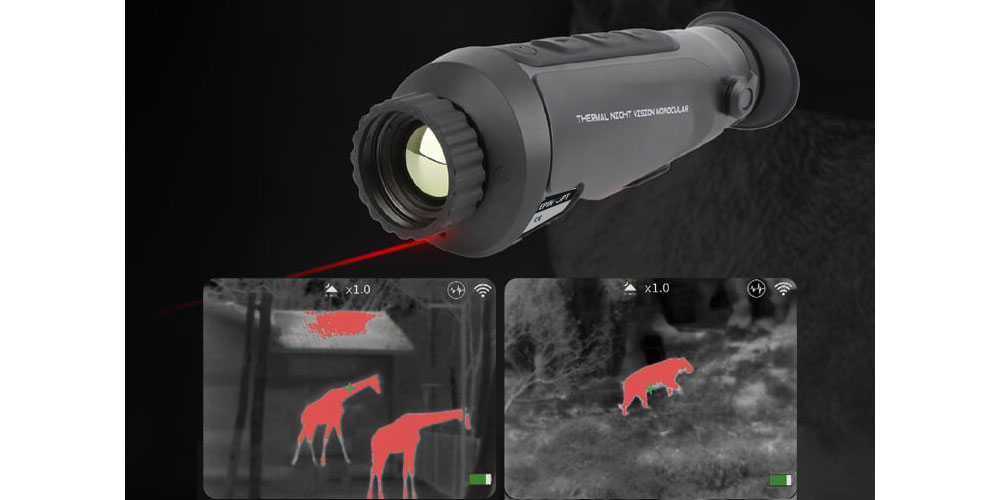

Laser targeting and crosshairs
Quickly locate the target, and express the target location

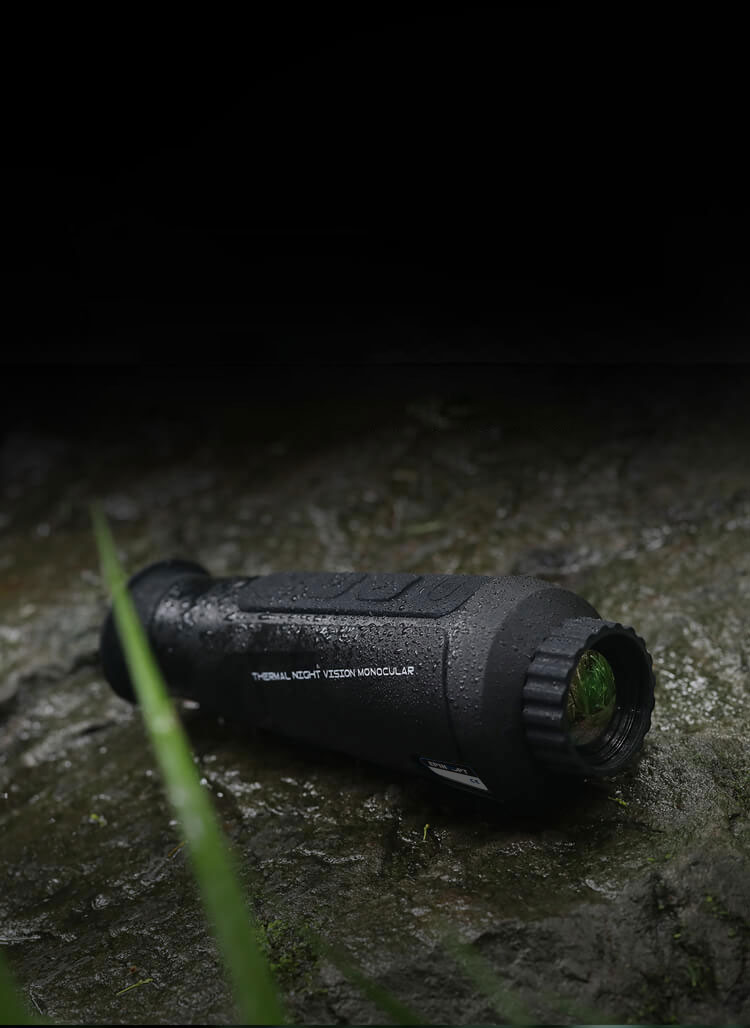

IP66 no fear of wind and rain
One-hand operation, lightweight and anti-drop -20C-+50℃ harsh environment available

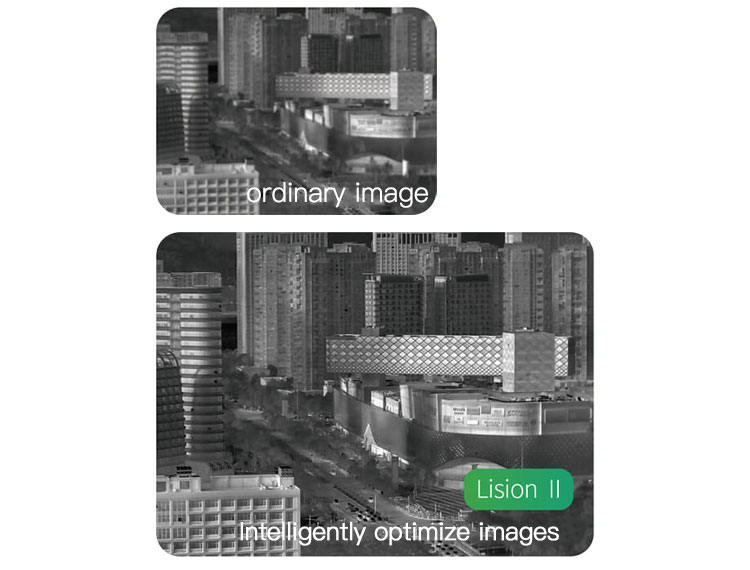

Lision ll intelligent image algorithm blessing
Image quality upgrade, detail enhancement, clear outline, sharp image
Application installation
package
