Fluorometer Fluo-800
Fluo-200 Fluo-800
Product Information:

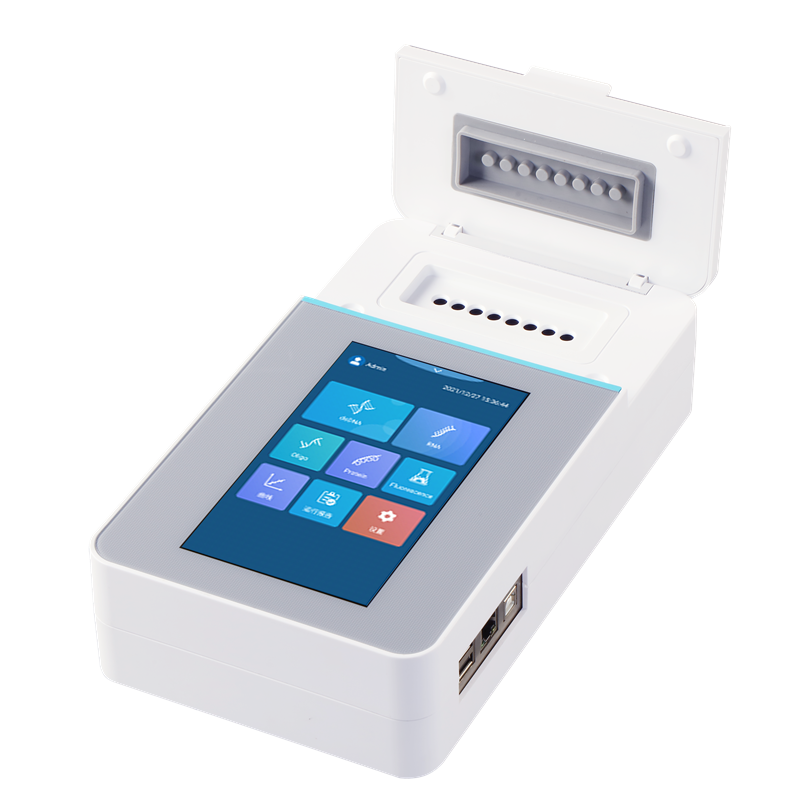

Fluo-800 is used for high sensitivity quantitative analysis of DNA, RNA and protein. Fluo-800 is available to do the fluorescence detecting for 8 samples in simultaneous. High precision detection method reduces the variation effectively. Easy and humanized software, intuitive user interface and rapid test method greatly shorten the testing time.
Flexible Software
1.User Authorization Management
User independent account and password to ensure program stability
2.Intuitive Interface Display
Modular layout makes function display more intuitive
3.Reagent Concentration Calculator
Quickly generate working solution preparation dosage, shorten reagent preparation time
4.Sample Concentration Analysis
To use the calculator to show how the assay range changes. It can help to select the appropriate assay based on sample volume and estimated sample concentration for the most accurate quantification
5.NGS Workflow Calculator
Use the molarity calculator to convert to molarity based on nucleic acid length and measured concentration.
Required weight, concentration, or molarity can be easily normalized via the normalization calculator, which replaces spreadsheet calculations for standard normalization during sequence library preparation

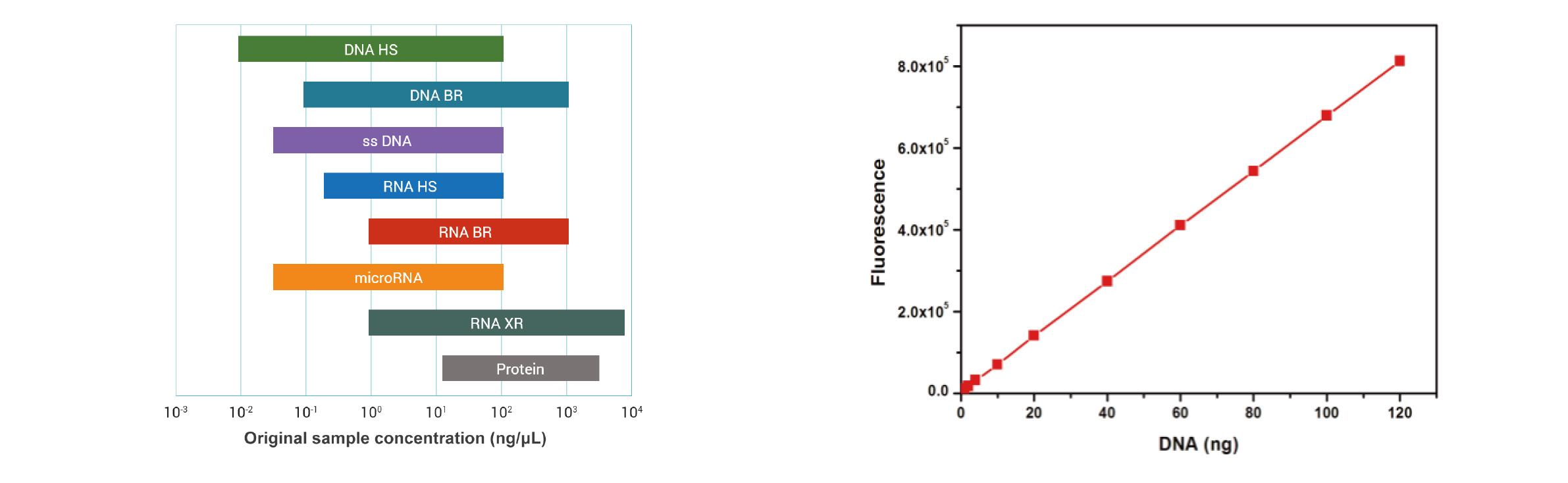

Fluo-200/800 common sample quantification range (left) and Allsheng® high sensitivity dsDNA quantification analysis kit with 0.2–100 ng linear quantification range (right)
Technical Data:
|
Model
|
Fluo-800
|
|
Light source
|
LED
|
|
Excitation filter
|
Blue:460±20nm; Red:625±20nm
|
|
Emission filter
|
Green:525-570nm(45nm); Red:670-725nm(55nm)
|
|
Detector
|
Photodiode
|
|
Sample tube type
|
0.2mL tube strip
|
|
Linear range
|
4 orders of magnitude
|
|
Sensitivity (detection limit)
|
<0.1pg/μL (dsDNA HS)
|
|
Measurement time
|
≤6s/8 samples
|
|
Input power
|
24V 2A
|
|
Operating voltage
|
100-240V@50-60Hz
|
|
External port
|
USB (Type A)×2, USB (Type B)×1, LAN ×1
|
|
Display
|
7-inch touch screen
|
|
Size (DxWxH)
|
286x161x75mm
|
|
Weight
|
2kg
|
|
Storage capacity
|
20000 programs
|
