INSIGNIA Handheld, head mounted and helmet mounted Fusion monocular

  • Vendor
    Clarity Scopes
    Sale price
    $11,188.00
    Regular price
    $11,188.00
    Unit price
    per
    Shipping calculated at checkout.

    Availability:

    Shipping: Free Shipping in the Continental United States

    Why Buy From Clarity Scopes

    Equipped with state-of-the-art features such as adjustable focus, intuitive controls, and extended battery life, our fusion monocular ensures that nothing stands in the way of your quest for greatness. Rain or shine, day or night, you can trust its rugged durability and weather-resistant build to withstand the harshest conditions.

    Product Description:

    Day & Night Fusion thermal vision Product Overview:

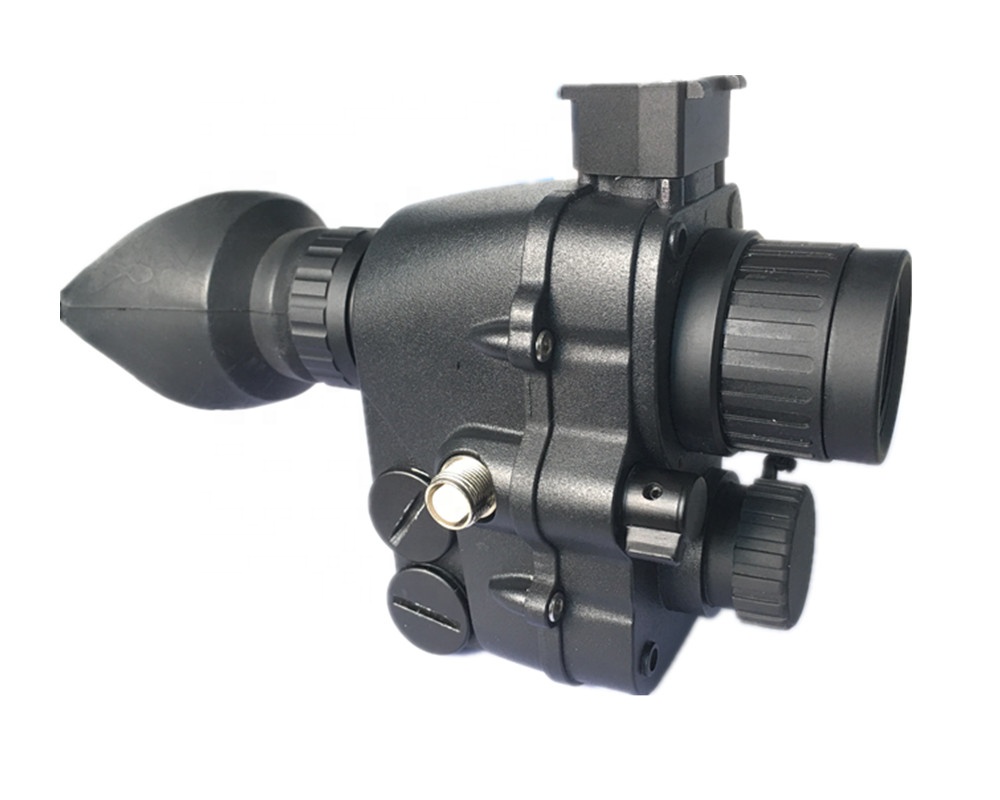

    Head mounted thermal and Night Vision fusion is a small-sized monocular which is a high technology product that use uncooled thermal sensor and night vision making image coupling by combined mirror, with small in size, light weight, easy to carry etc features. By using the night vision and infrared thermal image fused, will enhance the detective and identify ability of the night vision devices,also highly improve the detect as well as night observation ability.
    Specifications:

    Night Vision


    Magnification

    Diopter setting
    -4~+4
    FOV
    40°±2°
    Power supply
    5-10V
    Focus Range
    280mm-∞


    Objective Focus
    26mm


    F-number
    F1.2


    Resolution
    48-56/ IP/MM
    57-64/ IP/MM
    60-74/ IP/MM
    Night Vision

    Exit pupil diameter
    7mm


    Exit pupil distance
    18mm



    Infrared Thermal


    Magnification
    1x (E-Zoom:2x, 4x)
    Sensor (microbolometer) :
    384x288 /640x480-17µm×17µm
    Objective focus
    15mm
    F-number
    F0.9
    Display
    800x600 pixel
    Polarity control
    White hot / Black hot / Multiple Color Modes
    FOV
    24.6°× 18.5°
    Power Supply
    5-12V
    Overall data



    Magnification
    1X
    Night Vision’s working time
    60 hours
    Objective/Eyepiece
    Manual Focus
    Working temperature
    -40℃ to +50℃
    Weight
    ≤480g
    IP rate
    IP67
    Power supply
    CR2x23.7Vlithium(800mAh),or DC(5-12v)adaptor
    Measurement
    160(L)x68(W)x101(H)mm
    Fused working time
    2 hours
    Mean time between failures(MTBF)
    ≥500h
