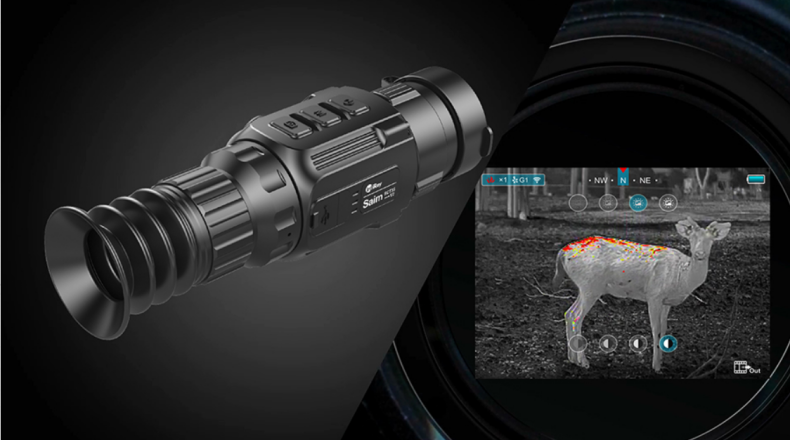

Built-in Infrared detector and matched with Matrix Ⅲ TM powerful algorithm designed to increase imaging clarity and overall image detail. Matrix Ⅲ TM results in a sharper, more detailed field of view and enhanced object identification capabilities. The Saim series provides high image quality, improving the image contrast automatically, and strengthening the image hierarchy, to find the target faster.
Availability:
Shipping & Returns: Free Shipping. All The Time.

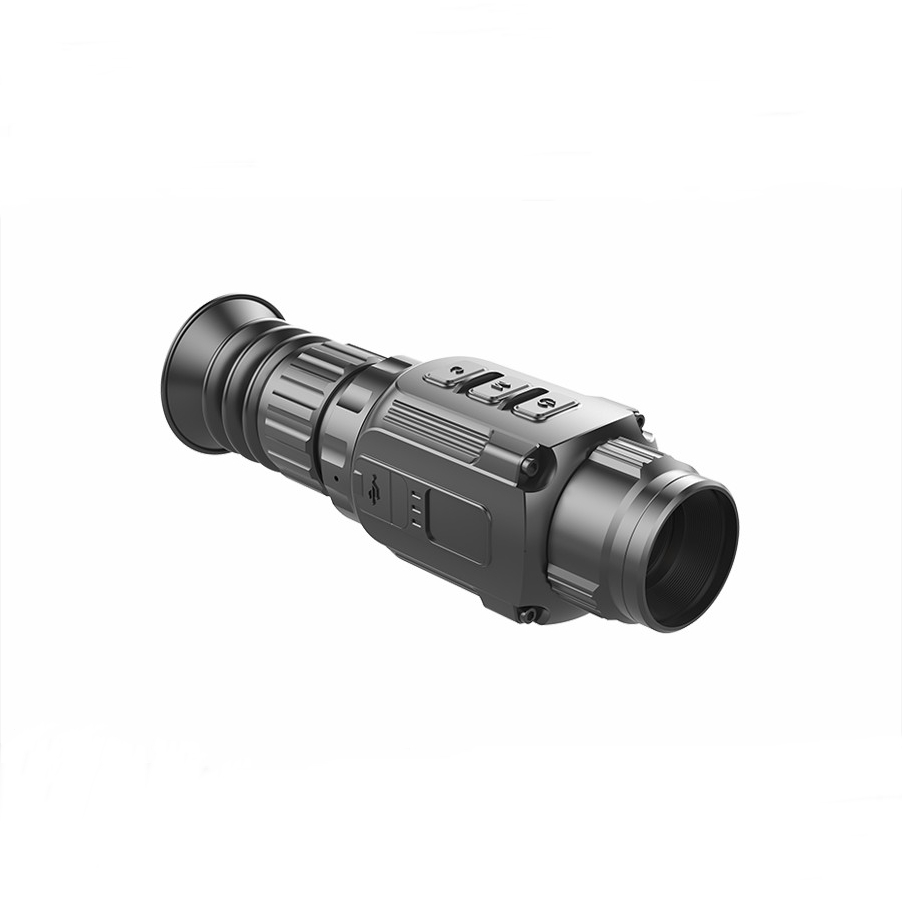

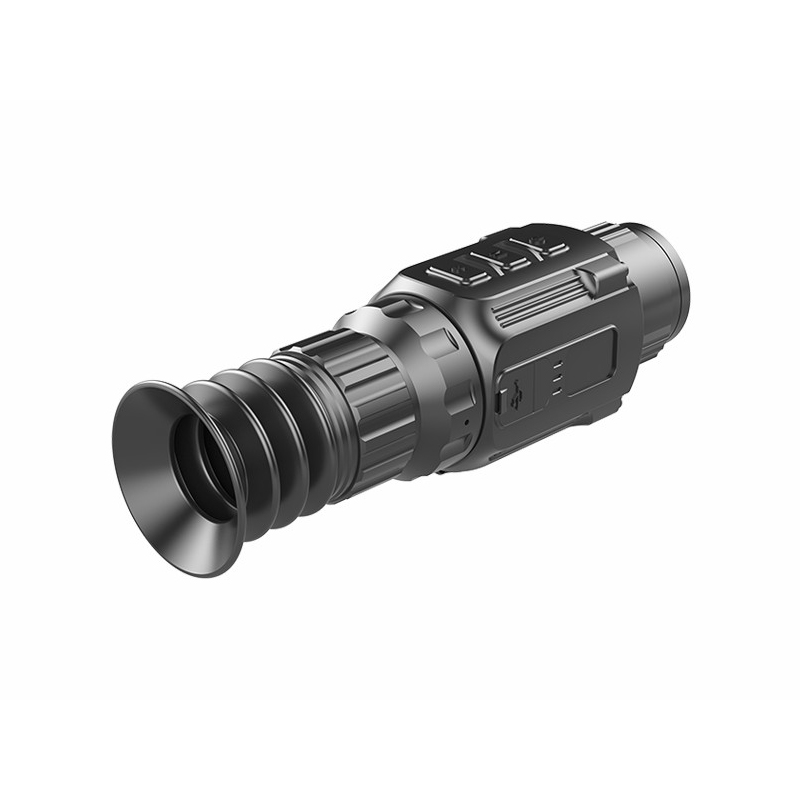

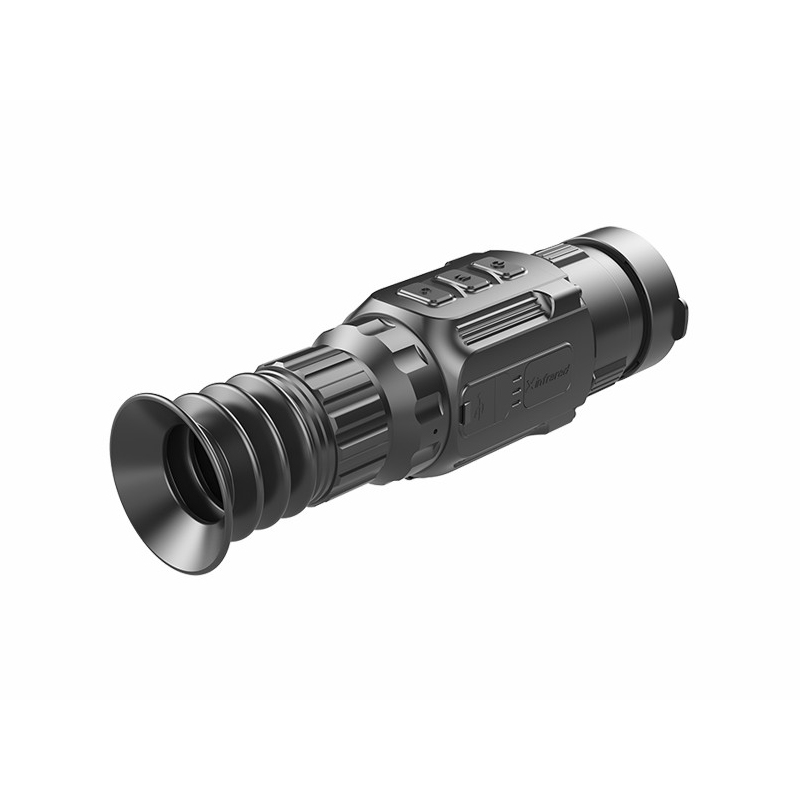

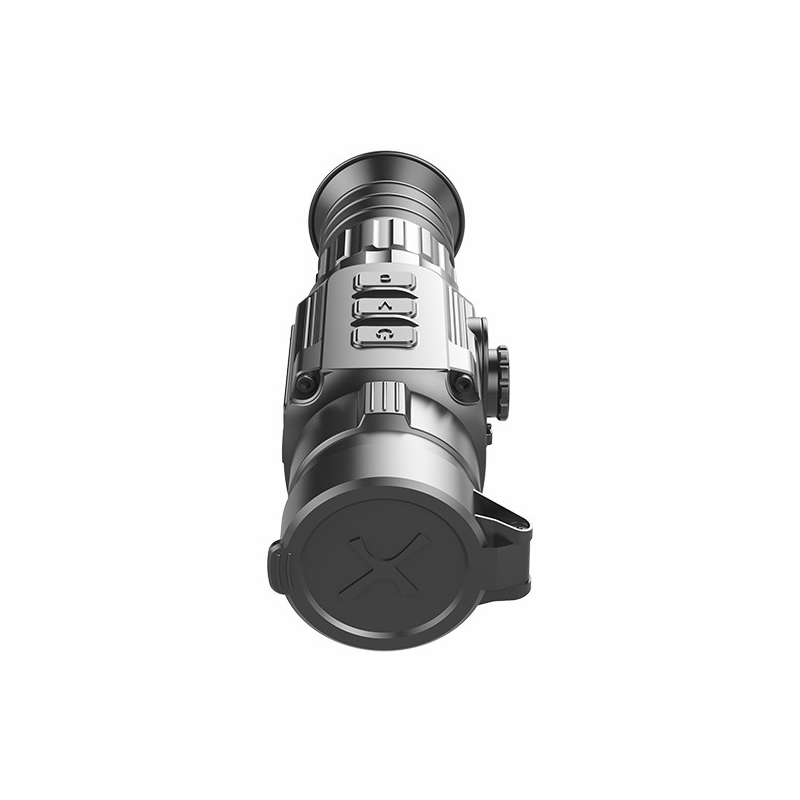

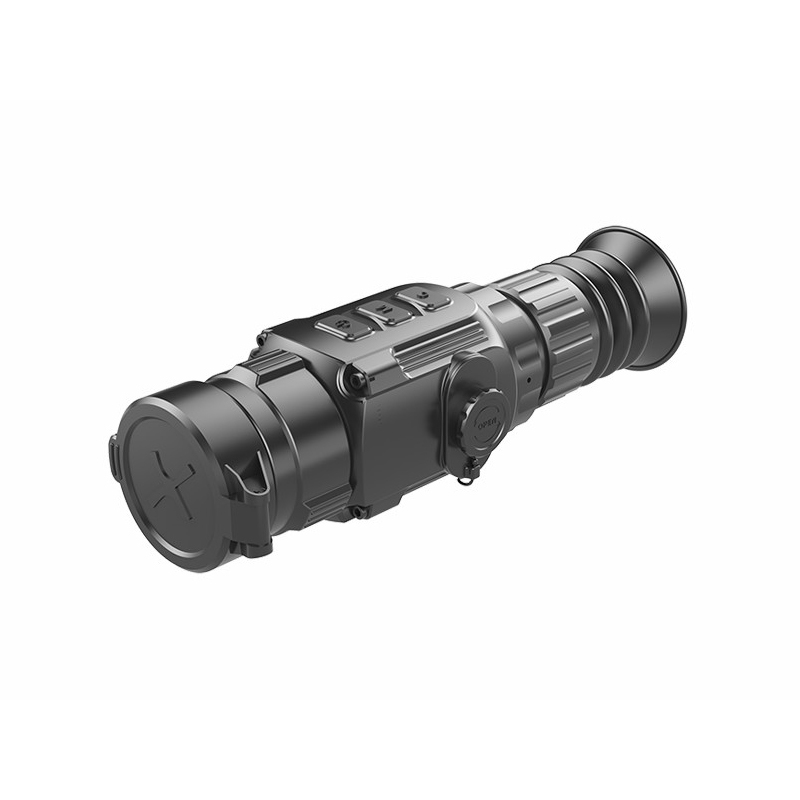

SCT35 384x288 12um 50Hz Thermal Imaging Spotting Monocular Hunting Scope Night Vision Thermal Telescope
INSIGNIA SCT35 thermal imaging scope night vision sight specifications:
|
Model
|
SCT35
|
|
Warranty
|
2 years
|
|
Brand Name
|
white label
|
|
Model Number
|
SCT35 V2
|
|
Size
|
195mmx61mmx61mm
|
|
Weight
|
410g (without battery)
|
|
Type
|
Monocular
|
|
Magnification
|
2.81x~11.24x
|
|
Effective Visual Distance
|
1818m
|
|
Operating Voltage
|
CR123*2
|
|
Sensor type
|
VOx Uncooled FPA
|
|
Sensor resolution
|
384*288
|
|
Pixel pitch
|
12um
|
|
NETD
|
≤40mk
|
|
Focal Length
|
35mm
|
|
Frame rate
|
50Hz
|
|
Screen
|
OLED 1024*768
|
|
Max operation time
|
4 hours
|
|
Reticle
|
support
|
|
USB type
|
Type C
|
Products Application
The INSIGNIA series thermal imaging scope is designed with portability and ease of operation in mind. Ergonomic design and excellent
imaging quality make the Saim series an excellent companion for night observation, even in rainy or foggy weather.
imaging quality make the Saim series an excellent companion for night observation, even in rainy or foggy weather.

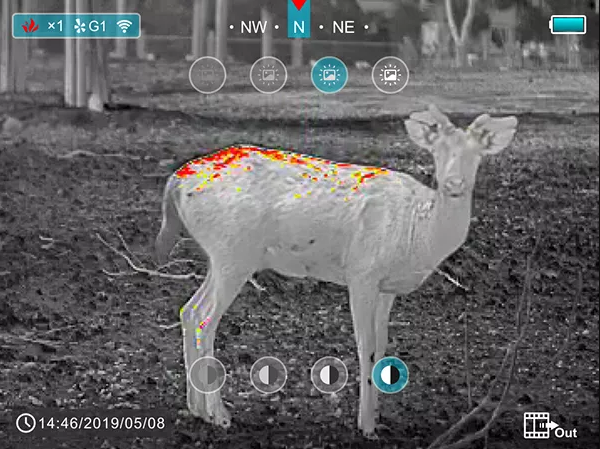

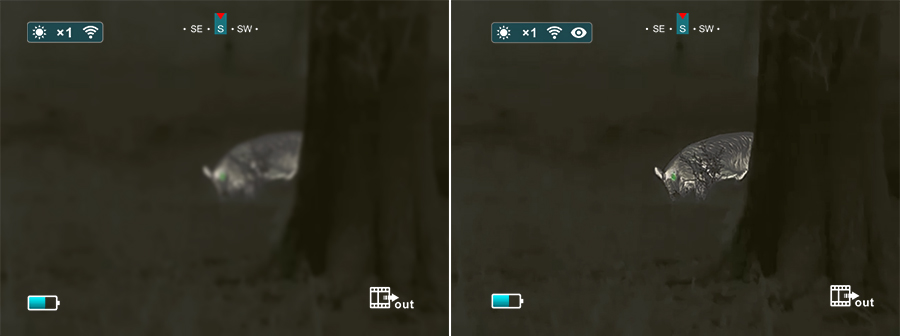

High Image Quality
User-Friendly Interface
Simple and easy to operate is the initial design intention of the Saim series. Full icon design, easy to understand, and translucent background design of menu can effectively avoid occlusion vision. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.
External Power Supply
The working time can be significantly prolonged by connecting with high capacity external power supply units, i.e. portable power source via Type-C cable presented in the package.

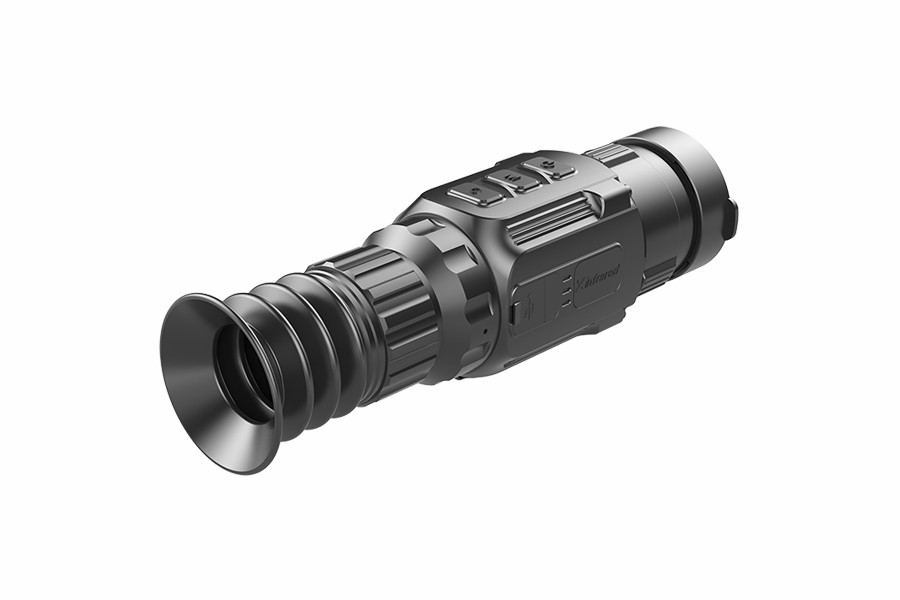

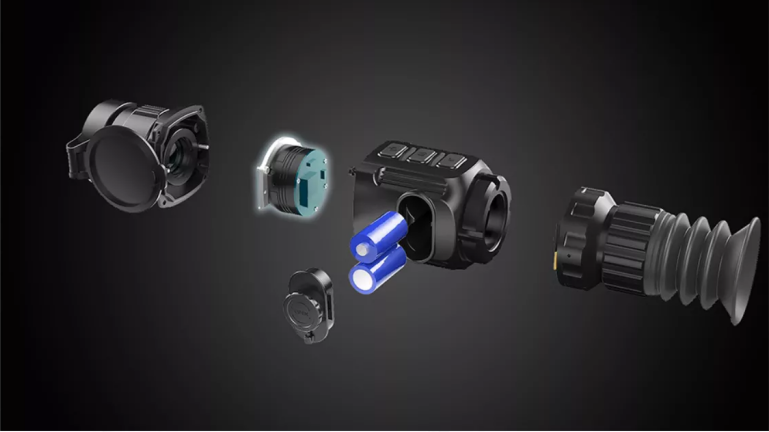

Compact Size and Lightweight
With reasonable layout, compact structure and lightweight, the Saim series is more comfortable and convenient for outdoor use.
High Shock Resistance
The Saim series features exceptionally high shock resistance up to 1000G.
Built-in Video Recorder and WiFi Connection
The Saim series is equipped with a 16GB recorder which enables video shooting and image capturing at the time of observation 16GB which can support storing about 20,000 pictures. Video and photo files saved in the internal memory can be transferred to a computer via wired connection or to a phone via WiFi. The WiFi hotspot of the product supports simultaneous connection of four devices.
Long Detection Range 1800 Meters
Actual range of detection of a human figure (1.8×0.5 m) in the field (human has outerwear, in the field against the background of the forest for the Saim thermal scopes up to 1818 meters, depending on the model.
