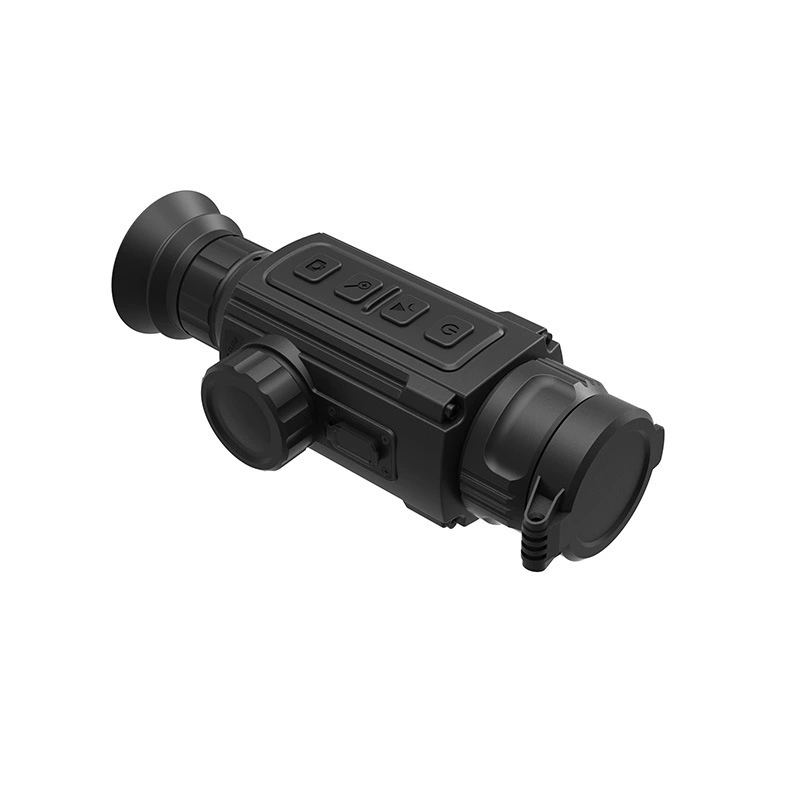

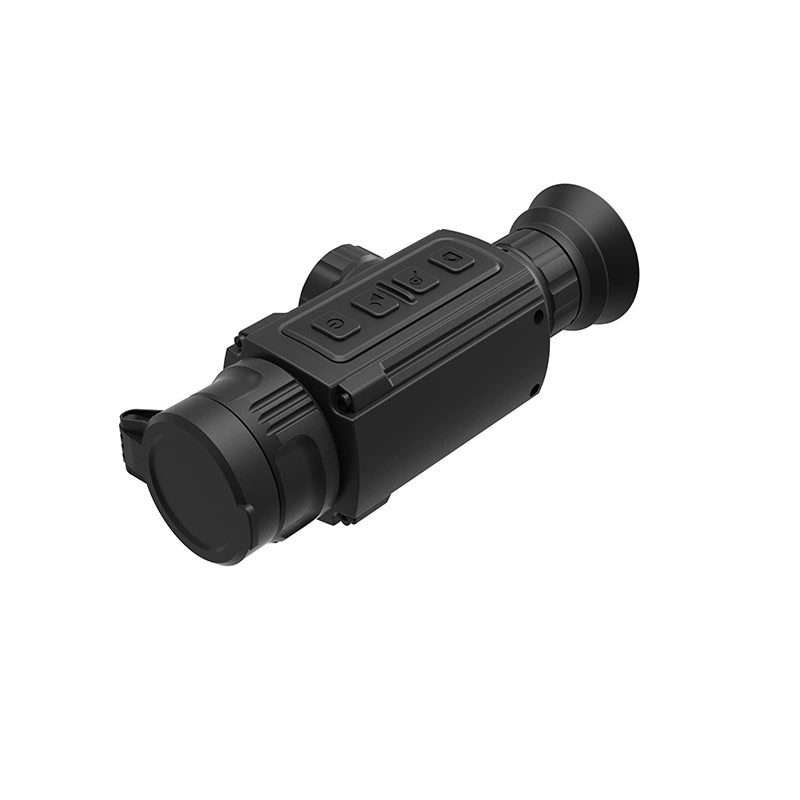

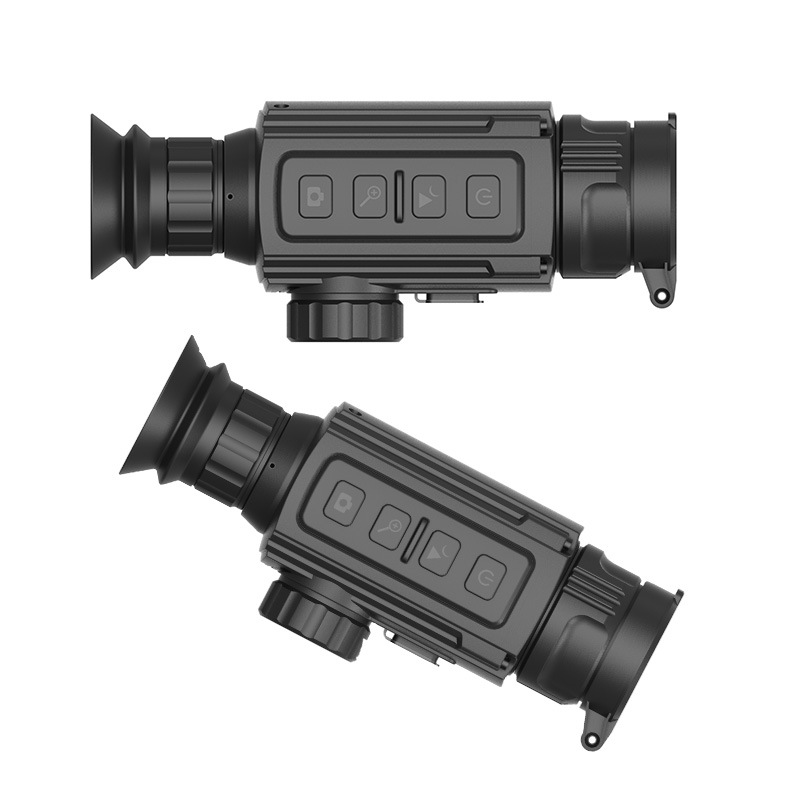

RS series infrared thermal imaging aiming device adopts uncooled vanadium oxide detector with core resolution of 384x288/640x512, 19mm/35mm/50mm lens optional, 50Hz frame frequency, built-in 1000m laser rangefinder module optional, built-in electronic compass And motion sensor, a variety of reticle and custom memory calibration parameters can be set, WiFi real-time transmission, built-in photo and video recording, 1440x1080 pixel OLED color ultra-clear display, delicate picture, detail enhancement algorithm, LisonII picture is clearer. The IP66 protection level is not afraid of harsh environments, and it is light and has no burden.
Product details
RS5 Thermal Monocular Night Vision Scope Specification:
|
Items
|
Technical parameter
|
||||
|
RS519-384
|
RS535-384
|
RS535-640
|
RS550-640
|
||
|
Detector
|
Type
|
VOx
|
|||
|
Pixel
|
384x288
|
640x512
|
|||
|
Pixel spacing
|
12um
|
||||
|
Wavelength range
|
8～14um
|
||||
|
NETD
|
≤35mk
|
||||
|
IR lens
|
Focus
|
19mm/F1.0
|
35mm/F1.0
|
35mm/F1.0
|
50mm/F1.0
|
|
FOV
|
13.8°x10.4°
|
7.5°x5.7°
|
12.5°x10.0°
|
8.8°x7.0°
|
|
|
Focusing method
|
Manual
|
||||
|
Monitor
|
OLED，0.39", 1440x1080
|
||||
|
Image display
|
Eyepiece Parameter
|
40mm
|
|||
|
Magnification
|
1.77x~7.08x
|
3.26x~13.04x
|
1.91x~7.64x
|
2.72x~10.88x
|
|
|
Diopter Adjustment
|
-5D~+5D
|
||||
|

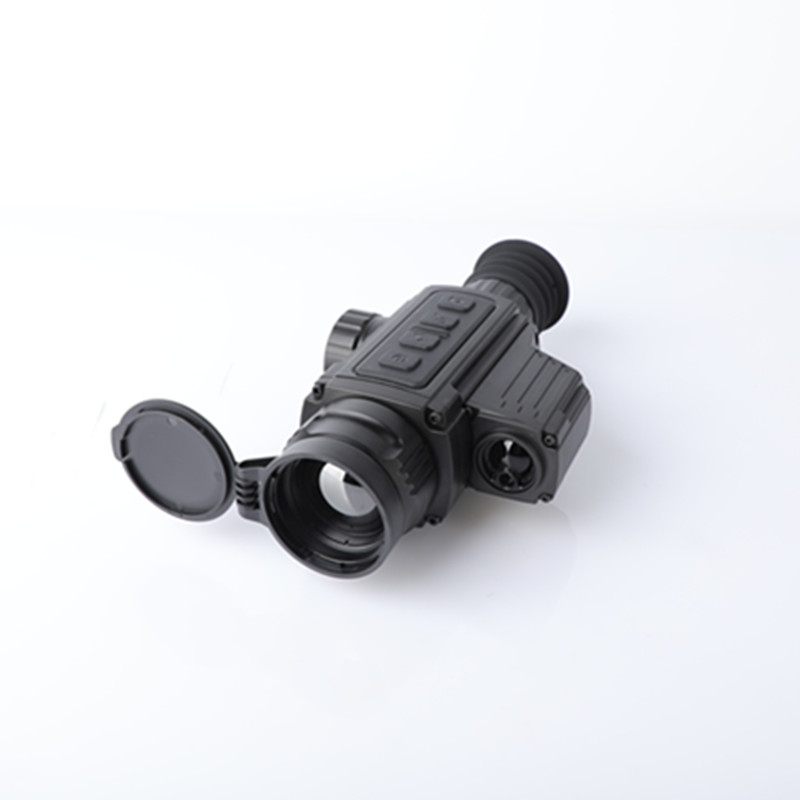

Laser rangefinder
|
can be extended (optional), ranging from 10 to 1000m
|
||||
|
Electronic compass/
motion sensor |
support
|
||||
|
Wi-Fi
|
support
|
||||
|
Image performance
|
Frame Rate
|
50Hz
|
|||
|
Image Correction
|
auto/manual
|
||||
|
E-zoom
|
,2x.4x
|
||||
|
Hot spot tracking
|
support
|
||||
|
Cross Reticle
|
support
|
||||
|
Palette
|
White heat, black heat, iron red, red heat, forests.
|
||||
|
Image transmission
|
WiFi real-time image transmission, photography, and video.
|
||||
|
Image storage
|
Memory
|
32GB
|
|||
|
Photos
|
support
|
||||
|
Video
|
support
|
||||
|
Power system
|
Battery Type
|
Single standard 26500 rechargeable lithium battery, replaceable.
|
|||
|
Battery working time
|
>5h
|
||||
|
Charging method
|
Support online charging
|
||||
|
External power supply
|
DC5V/2A
|
||||
|
Interface
|
Data interface
|
Type-C
|
|||
|

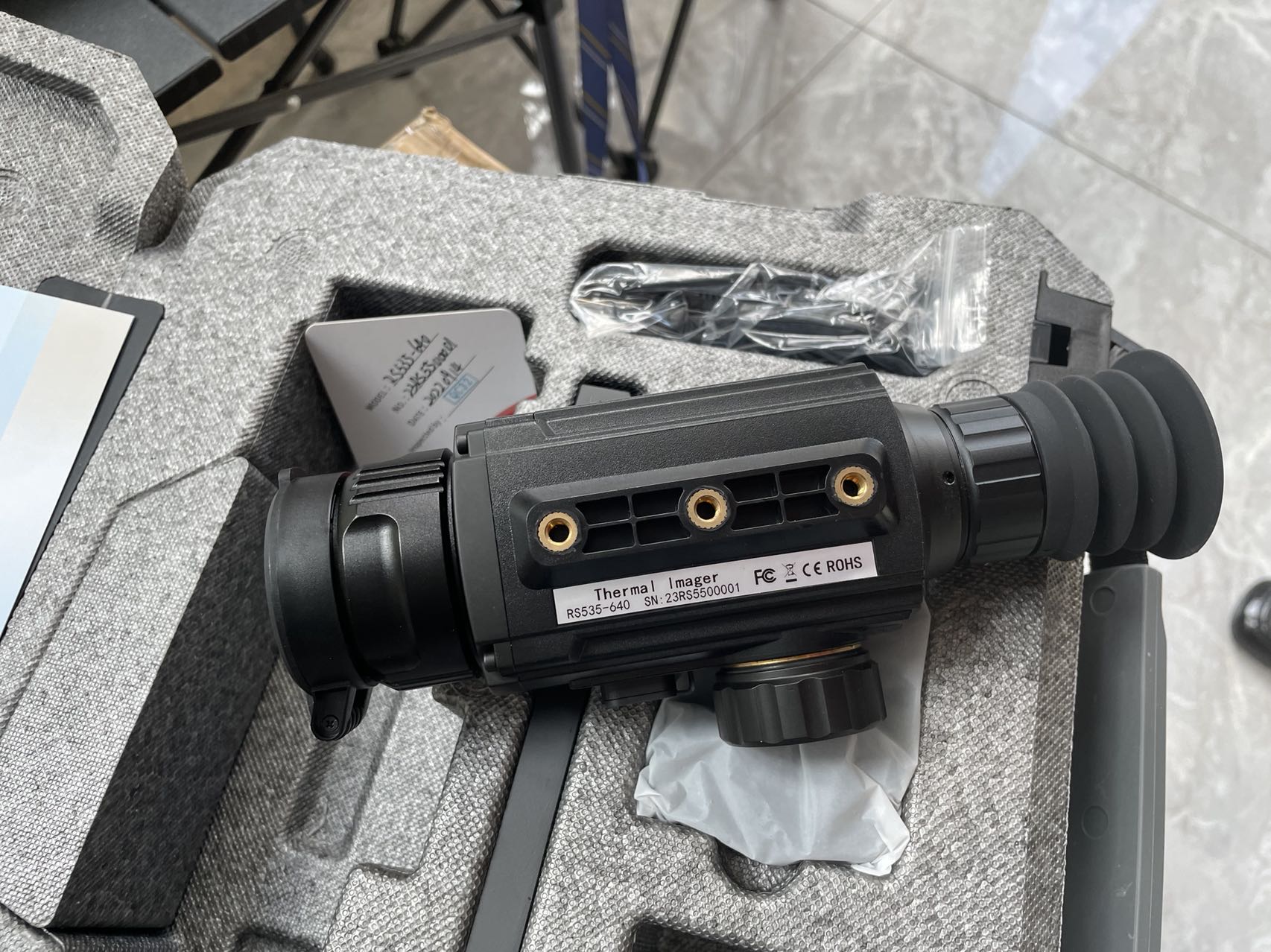

Installation interface
|
Three standard fixing screw holes, and different optional mounting brackets
|
||||
|
Physical characteristic
|
Dimension（mm）
|
≤165*80*65mm/≤165*110*65mm （With laser）
|
≤190*80*65mm/≤190*110*65mm （With laser）
|
≤190*80*65mm/≤190*110*65mm（With laser）
|
≤200*80*65mm/≤200*110*65mm （With laser）
|
|
Weight（g）
|
≤470g/ ≤532g（With laser）
|
≤520g/ ≤582g（With laser）
|
≤525g/ ≤587g（With laser）
|
≤570g/ ≤632（With laser）
|
|
|
Environment parameter
|
Working temperature
|
-30℃~ +55℃（-22°F ~ 131°F）
|
|||
|
Storage temperature
|
-40℃~ +70℃
|
||||
|
Max. Recoil Power
|
800g/ms
|
||||
|
Capsulation
|
IP66
|
||||
|
Detection distance
|
Human（1.8×0.5）m
|
750m
|
1400m
|
1400m
|
1900m
|
|
Car（2.3×2.3）m
|
1800m
|
2200m
|
2200m
|
3200m
|
|
|
Recognition distance
|
Human（1.8×0.5）m
|
376m
|
700m
|
700m
|
1000m
|
|
Car（2.3×2.3）m
|
910m
|
1100m
|
1100m
|
1600m
|
|
Features and Benefits:
▶ Excellent imaging performance, with 12μm@640x512 TEC metalencapsulated thermal detector for crisper images. ▶ Rugged and durable, IP66 degree of protection, high shock resistance, no fears of harsh weather. ▶Zoom in on the center of the reticle, and the relative position of the aiming point and the reticle remains unchanged to ensure the aiming accuracy. ▶50fps high frame rate, ensuring capture smooth and vivid image during fast motion of observer or object of observation. ▶1440x1080 resolution AMOLED eyepieces, colorful and detailed images ▶Battery-mount user-friendly design, both side can be mounted, change battery easily in darkness.
IP66 Waterproof Rated
IP66 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly,even after submersion in up to 1 meter of water for up to 30 minutes.

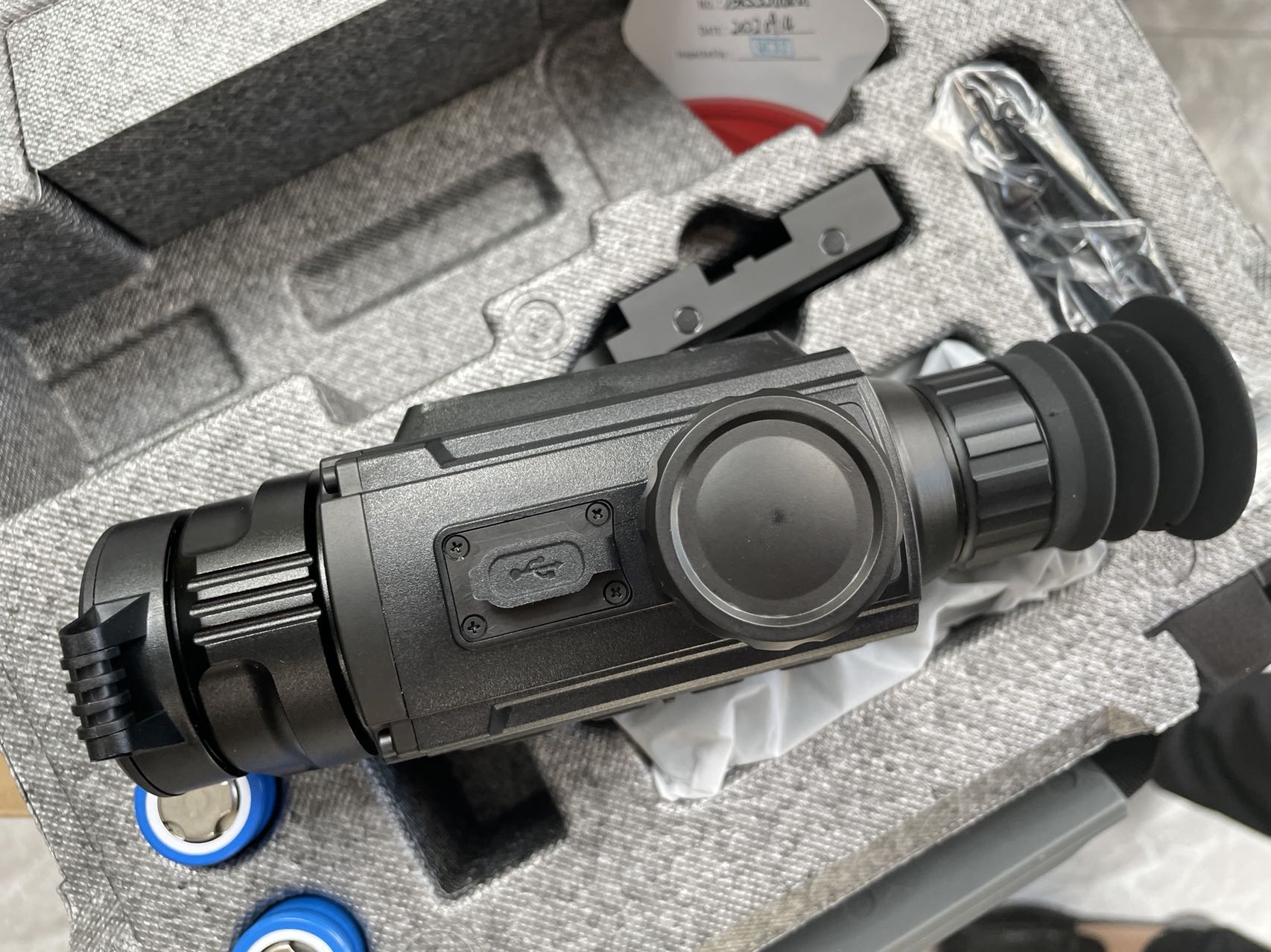

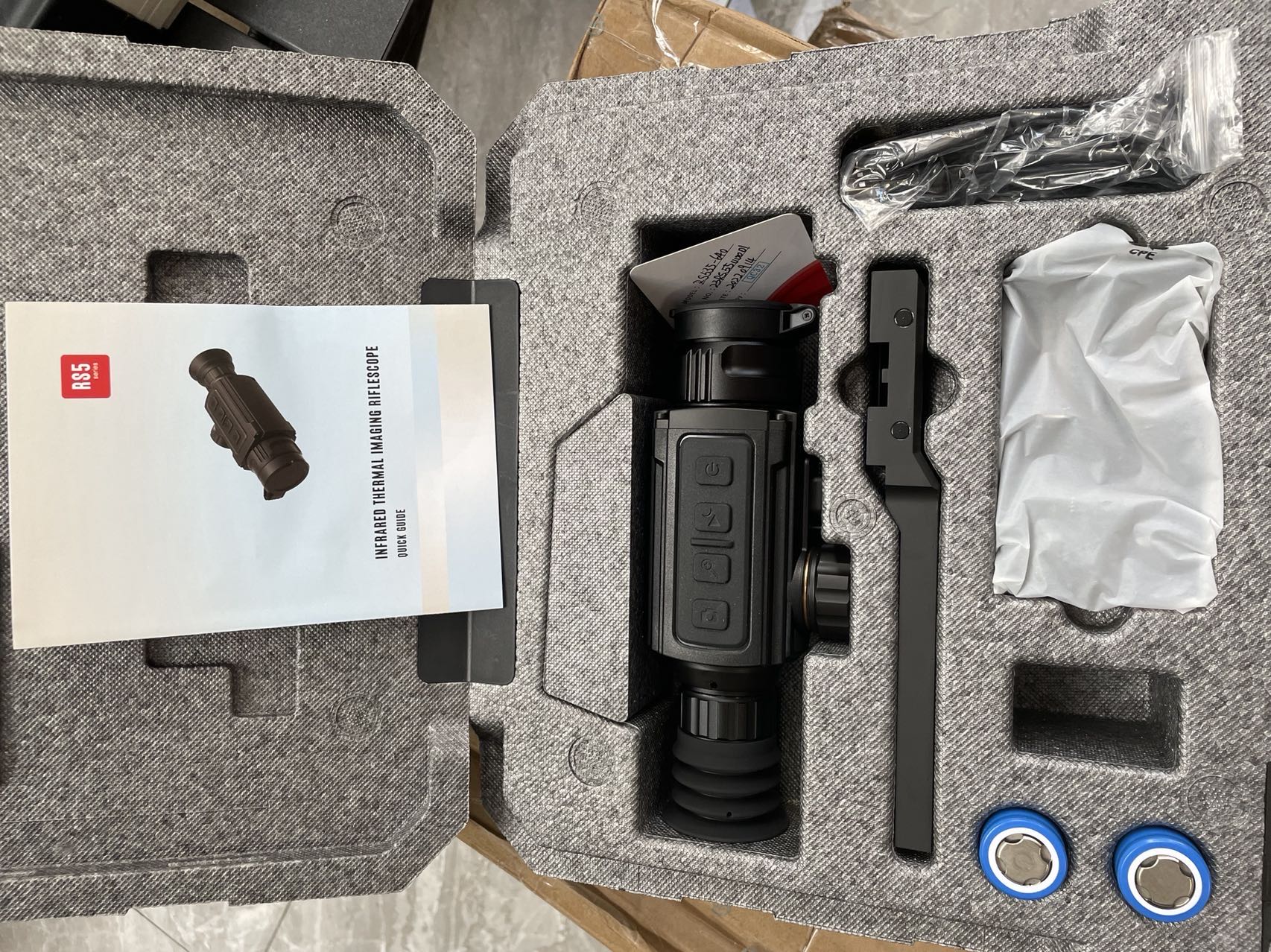

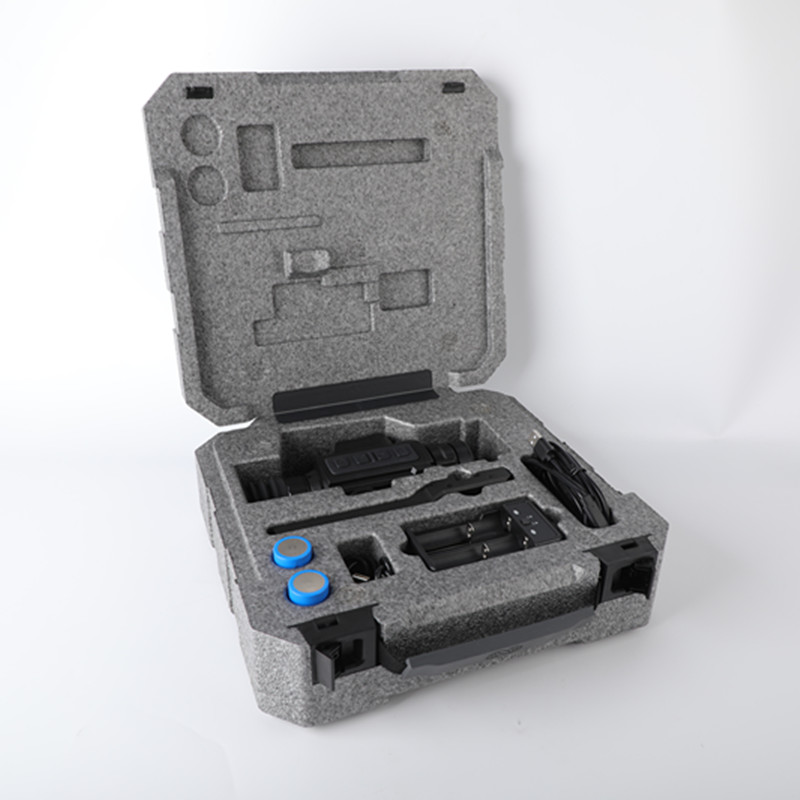

RS Series Infrared Thermal Imaging Telescope RS650 Thermal Sight Package
