JBA-000109 Medium 2 screws Dovetail Astronomy Telescope and Camera Mounting Equatorial tripod Accessories OSL-212

Parcel detail

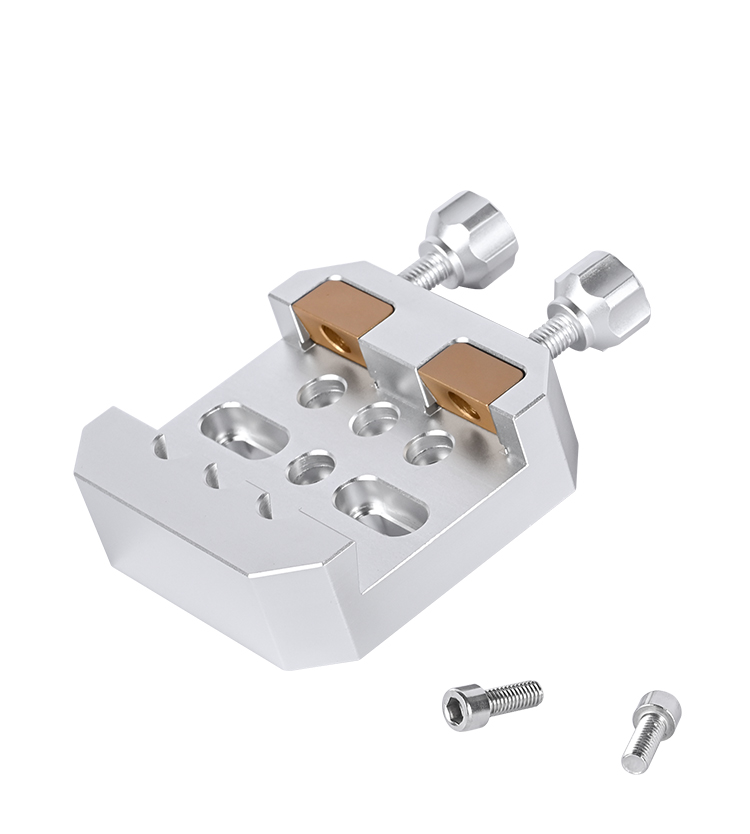

1 x Dovetail Clamp w/Brass Screw and 2 Locking Screws

Features:
With the dovetail clamp, you can attach your telescope to mount - especially suited for heavy telescopes Areal clamping with two
brass screws and locking screws - protects the accessories and provides a very stable connection 10 bores allow connecting to

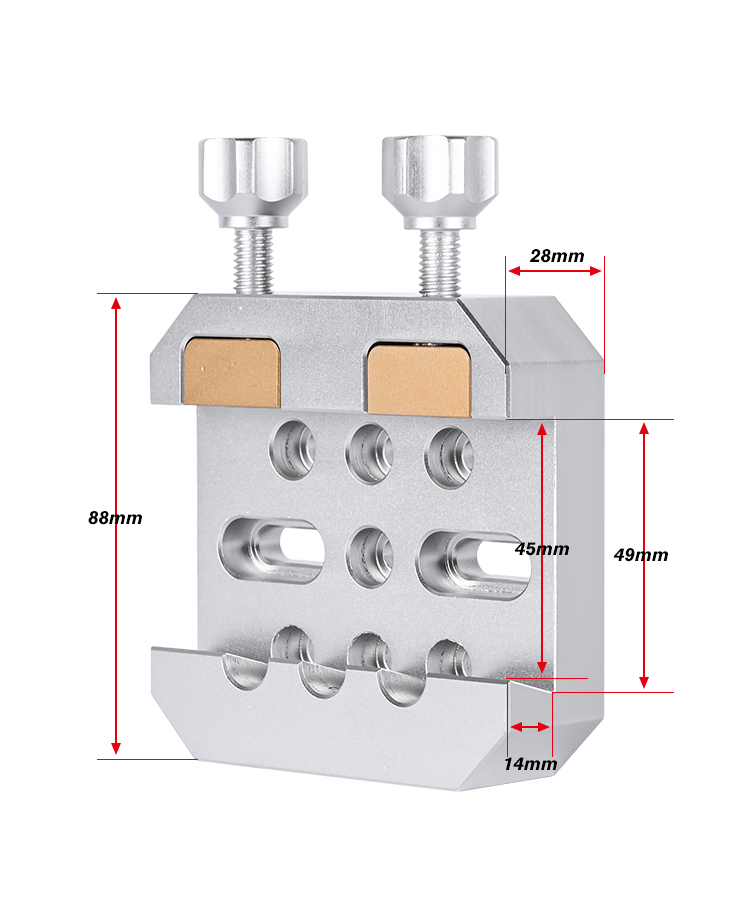

almost all surfaces Loading weight: 20kg Length: 88mm Height: 28mm dovetail upside: 45mm dovetail downside: 49mm dovetail depth:
14mm Material: light aviation aluminum alloy Interface for Telescope Tube: Suitable for 3/4 and 1/4 inch screws and screw holes.

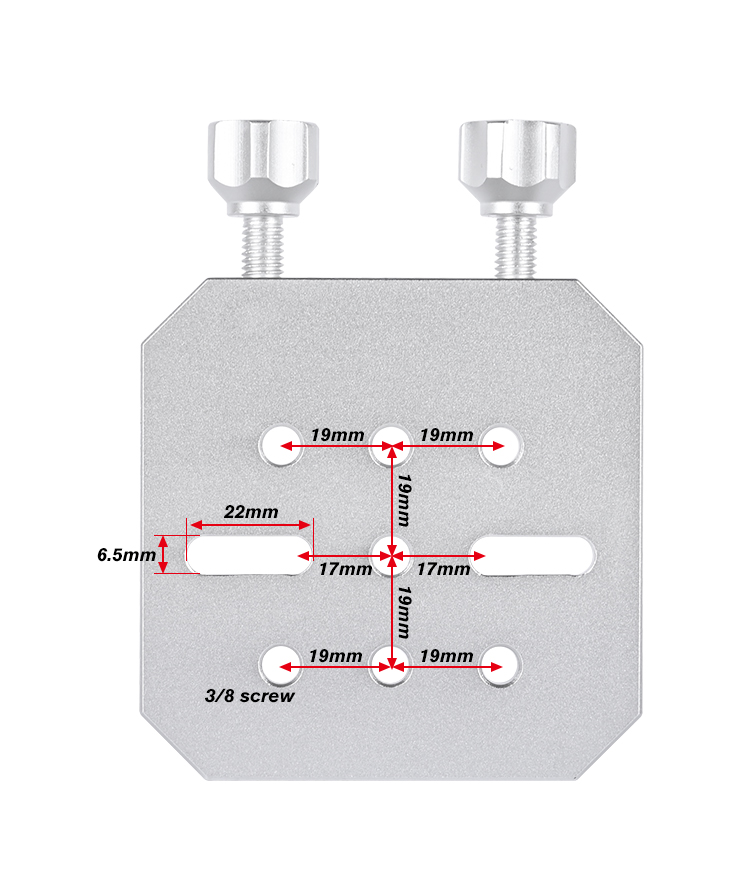

M6 and M7, M8 series are available. The pitch of the M8 is: 35 mm M6, a quarter of the pitch is: a group of 38 mm, a group of 60
mm There is also a is 3/8 of a screw hole Color: Silver Net Weight: 435g/15.35oz
