Future Optics’ active IR laser night vision camera series is a night vision scope equipped with active infrared laser illuminator and high-sensitivity sensor, and it is widely used for observing and recording outdoor target during the daytime and at night.

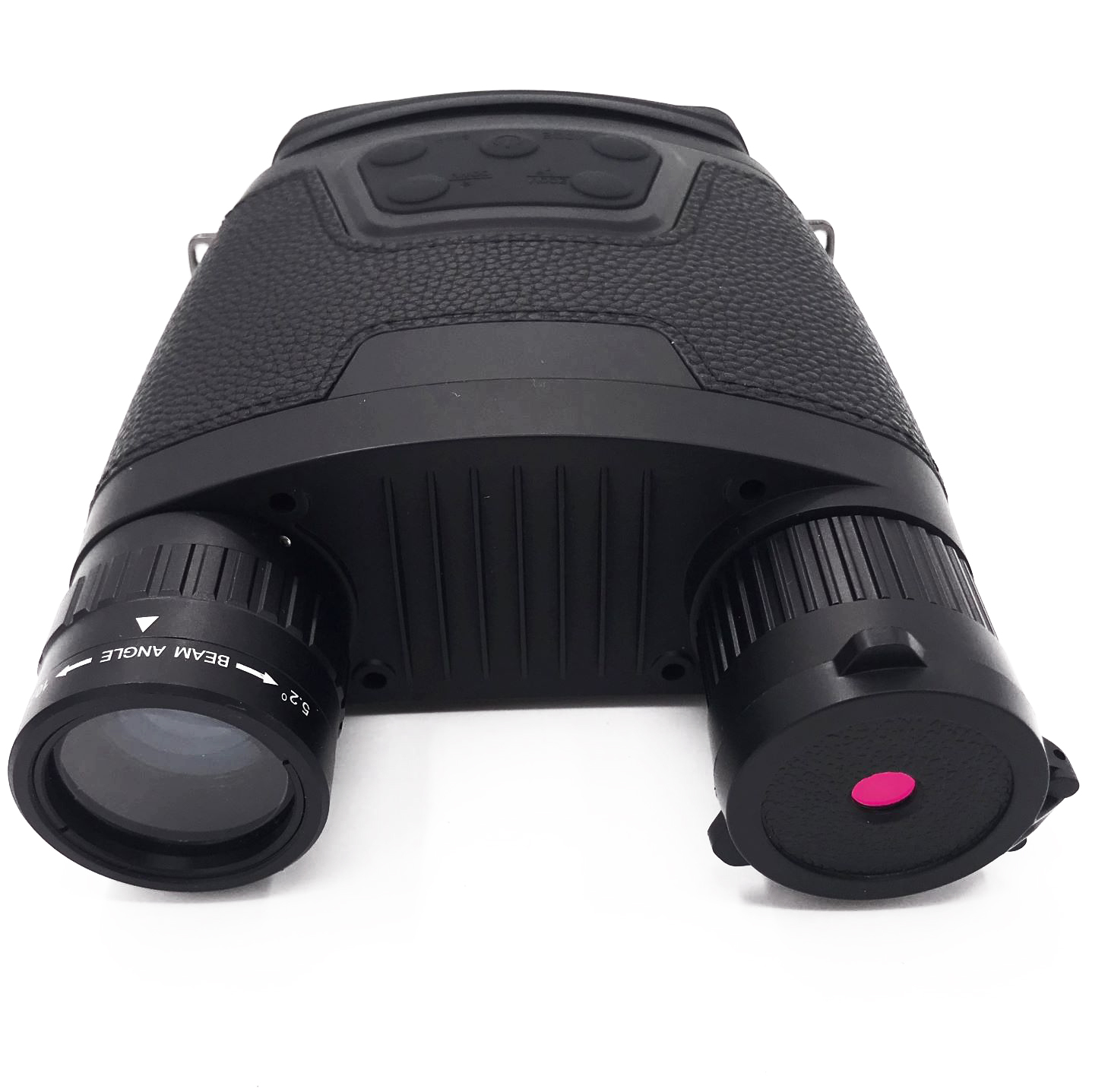

Future Optics’ active IR laser night vision camera consists of objective lens, IR laser with telecentric lens, high-sensitivity CMOS sensor and built-in TFT LCD.

Availability:
Shipping & Returns: Free Shipping. All The Time.


Overview
Detailed message of design

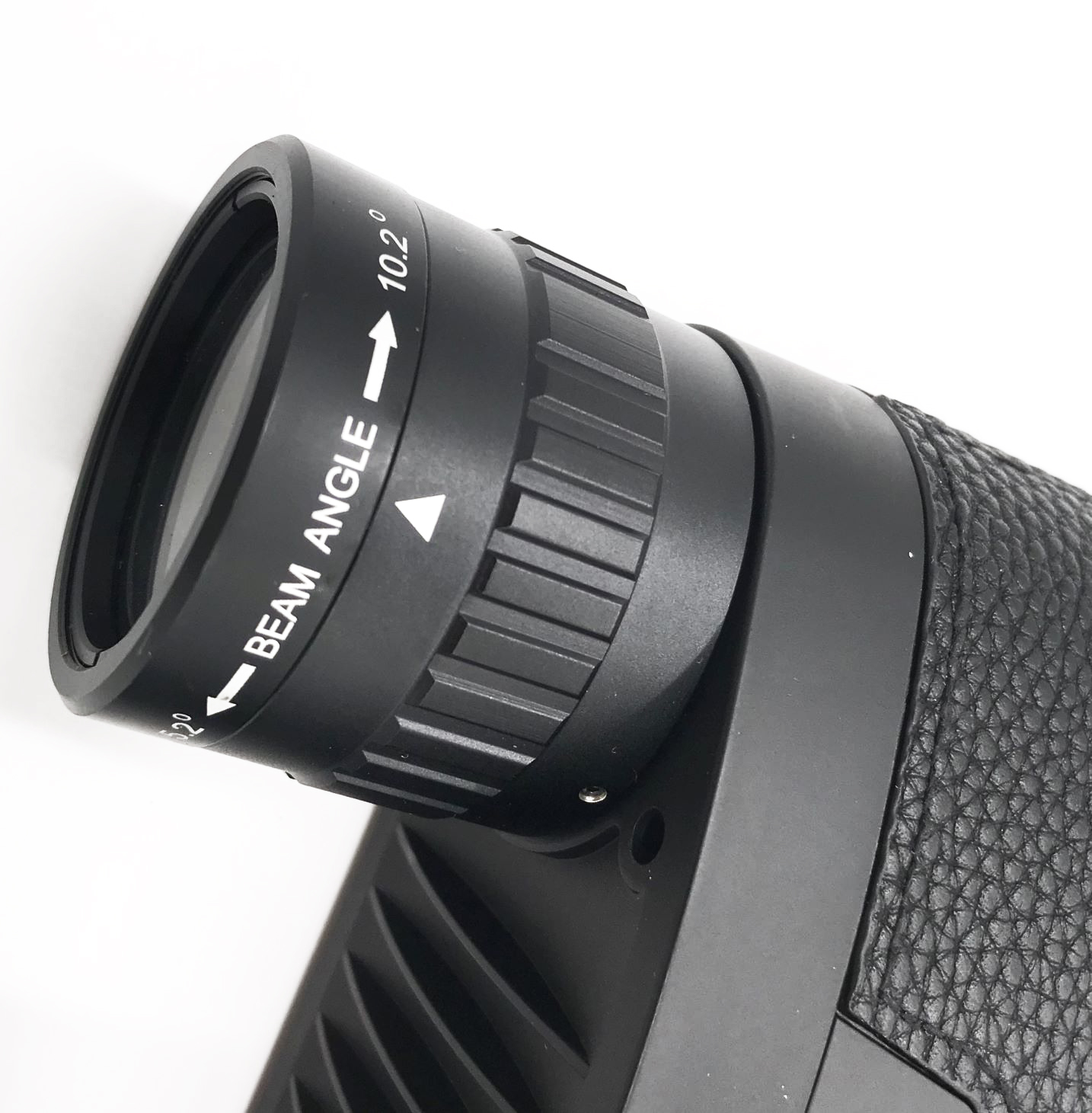

2X zoom-in IR laser beam angle

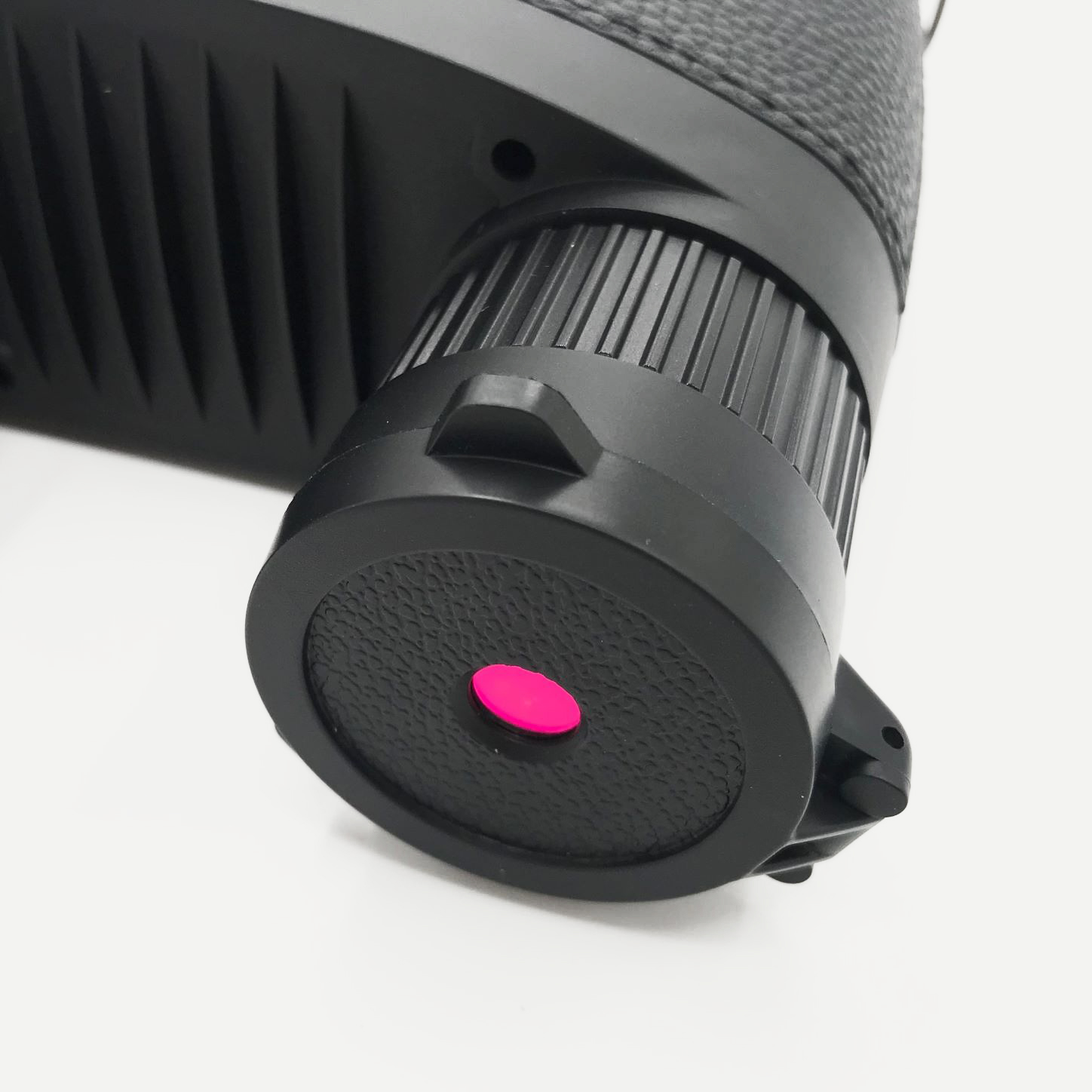

IR filter cap for daytime usage

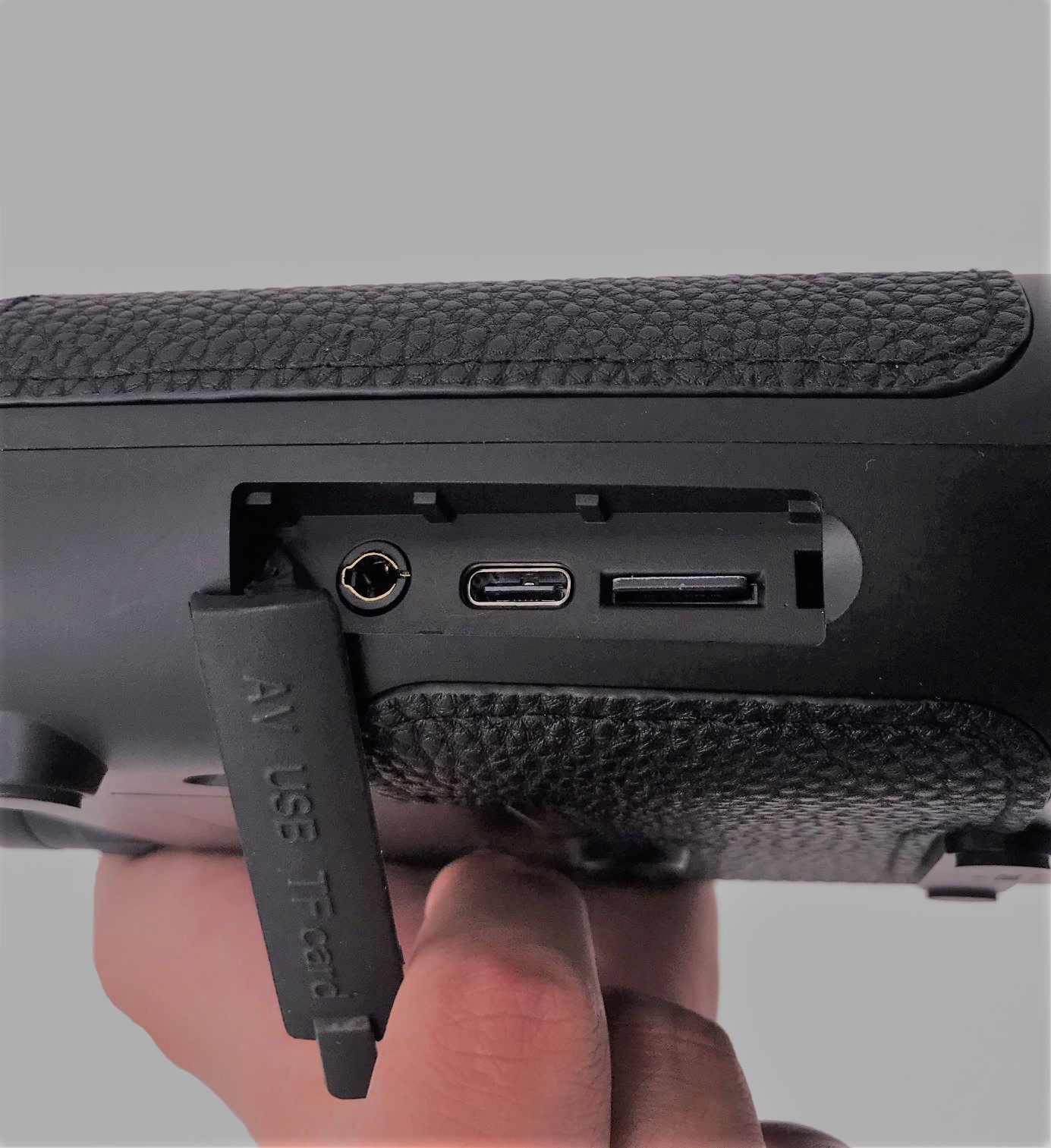

Windows of output connection

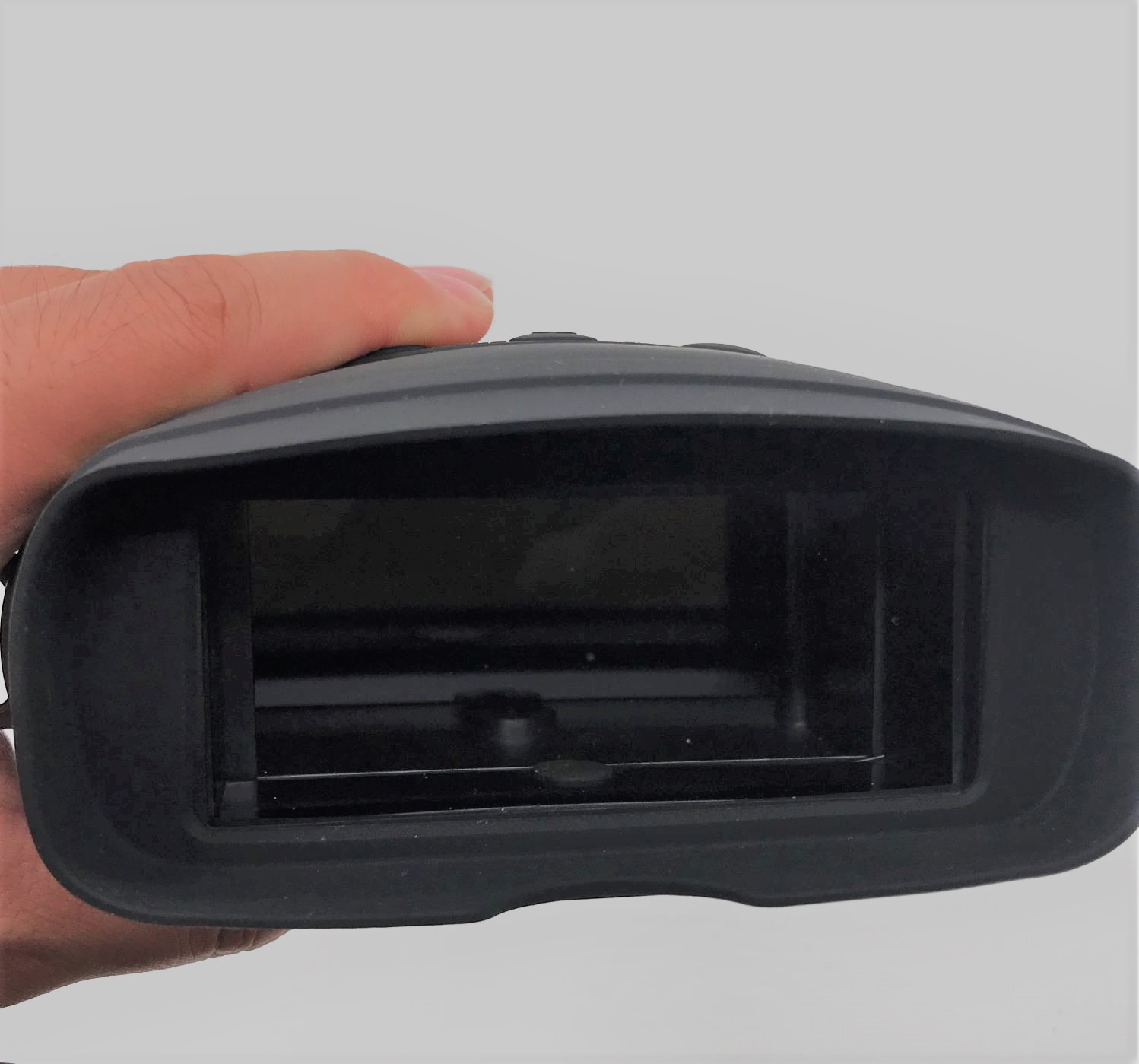

LED screen inside rubber shell
Features
Wide dynamic range for day and night use.
High resolution and high-sensitivity imaging sensor to capture HD images.
Large-capacity lithium polymer batteries for far distance illumination.
Multi-leave TFT LCD brightness adjustment to match backlight.
High resolution and high-sensitivity imaging sensor to capture HD images.
Large-capacity lithium polymer batteries for far distance illumination.
Multi-leave TFT LCD brightness adjustment to match backlight.
Applications
Based on the invisible property of infrared laser and the penetrating property of fog, this active infrared laser night vision
scope is not only used for day and night observation, but also has the characteristics of observation in foggy days.
scope is not only used for day and night observation, but also has the characteristics of observation in foggy days.
Specifications
Parameters
|
Specifications
|
Objective lens magnification
|
3.5X
|
Objective lens aperture
|
31nm
|
Focus range
|
5m~∞
|
Exit pupil distance
|
30mm
|
Angle of view
|
9.2°
|
Effective lighting distance
|
380m
|
Zoom rate of telecentric lens
|
2X
|
Illumination power
|
5W
|
Center wavelength
|
850nm
|
Imaging sensor type
|
Wide dynamic range and high-sensitivity CMOS sensor
|
Active resolution
|
1920X1080
|
Sensor size
|
1/2.7''
|
Resolution of TFT LCD
|
640X360
|
Display module
|
OSD menu display
|
Digital zoom rate
|
3X
|
Video module
|
CVBS
|
Storage medium
|
SDHC 4GB~128GB TF Card
|
Power supply
|
2 pcs 18650 battery 7-8.4V
|
Size
|
190x148x58
|
Weight
|
720g
|
