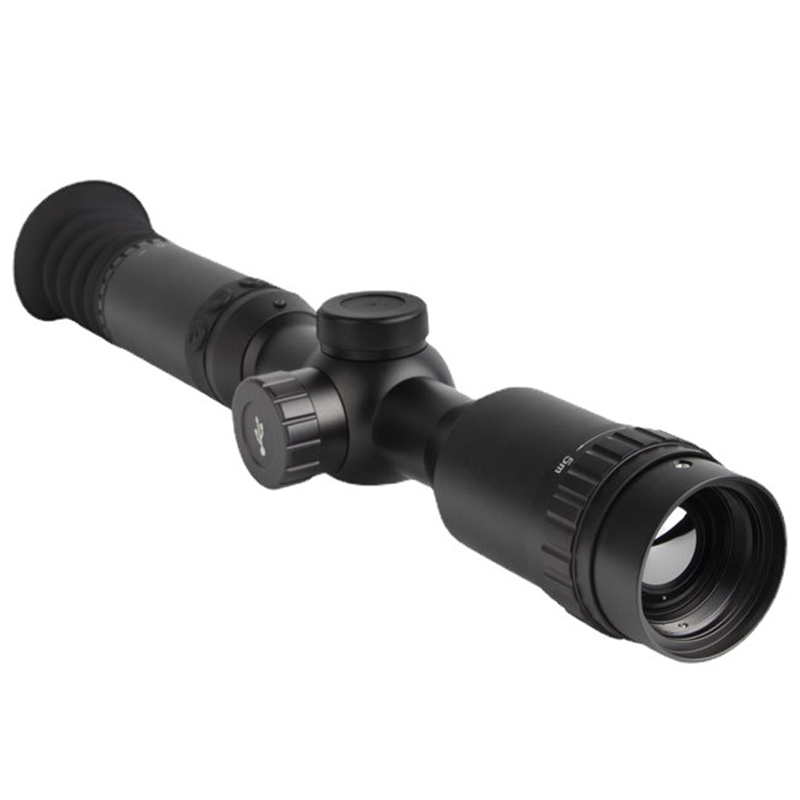

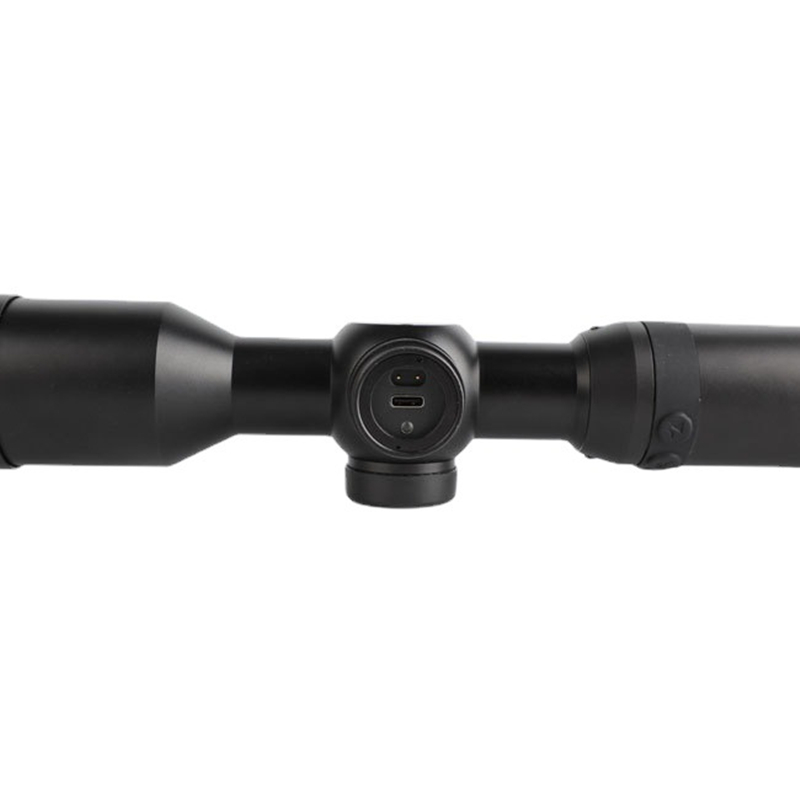

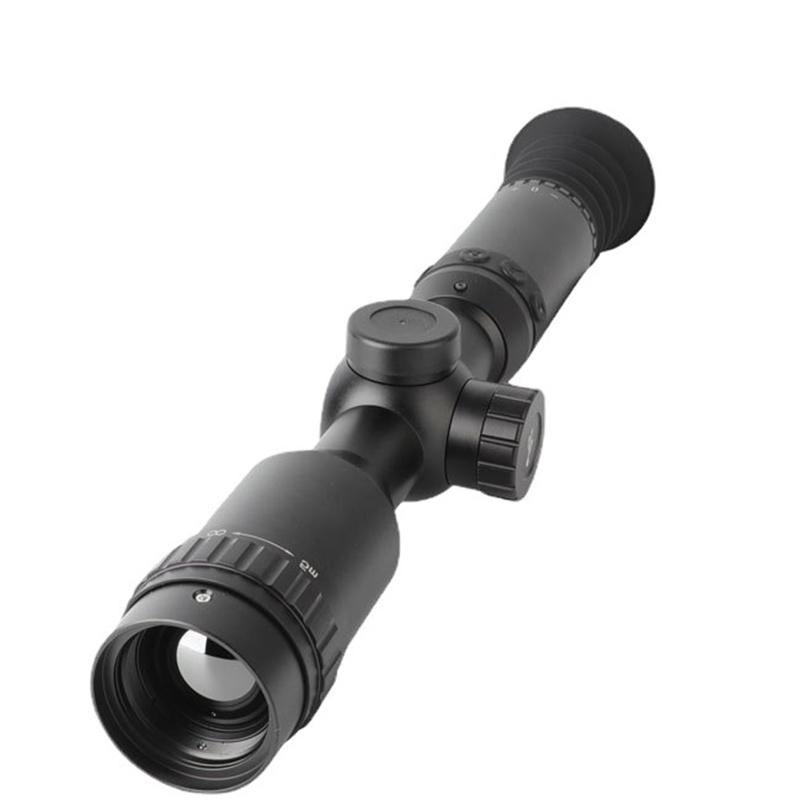

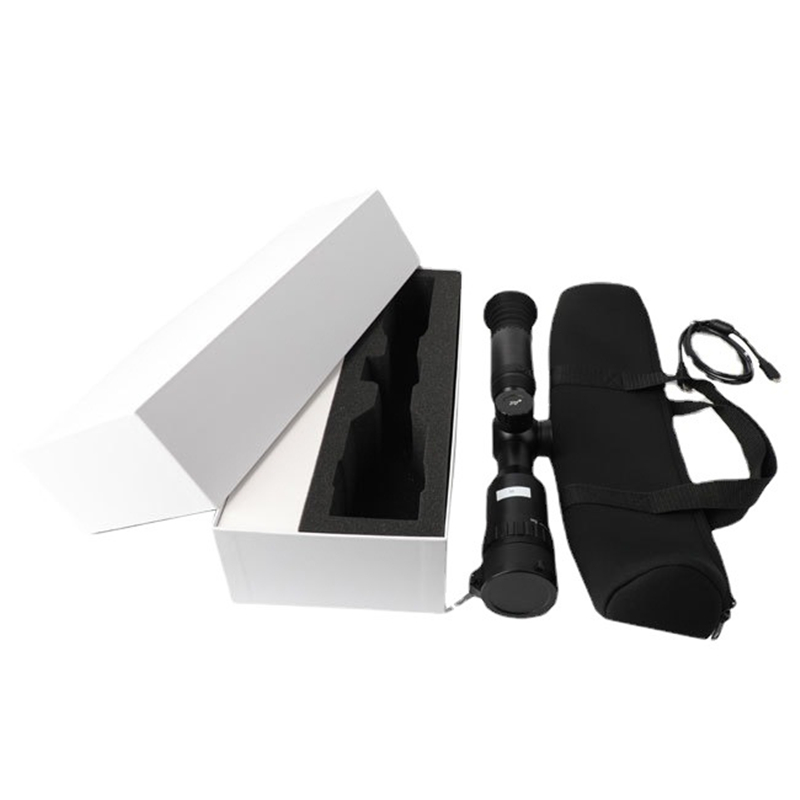

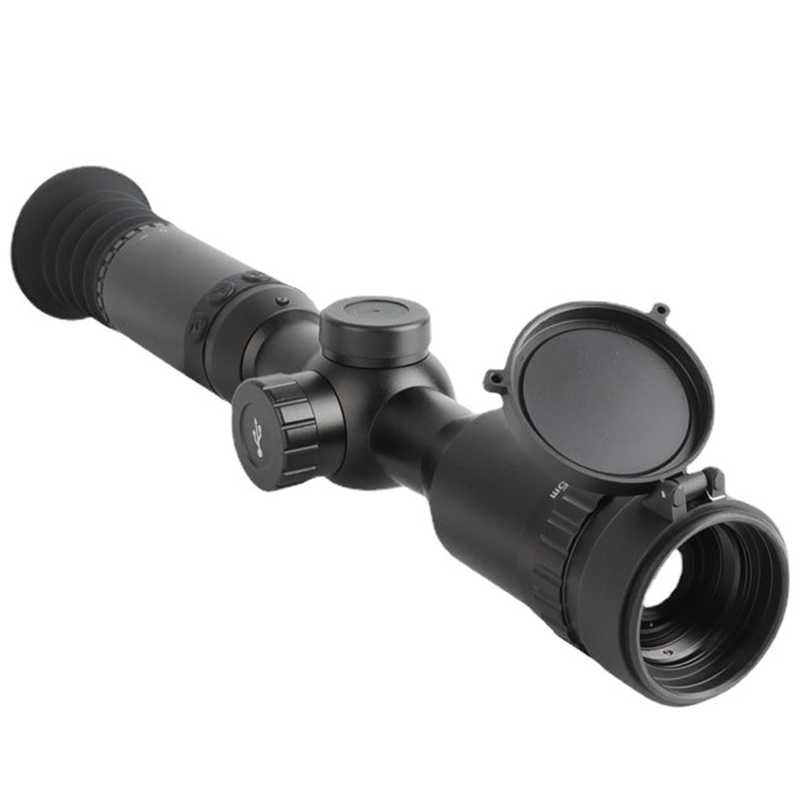

Thermal imaging Scope INSIGNIA RS3 Scope Night Vision Monocular Scope 25mm/35mm/50mm Lens Infrared Thermal Imaging Optical Scope
INSIGNIA RS3 Thermal Imaging Night Vision Monocular Specification:
|
Item
|
RS325-384
|
RS335-384
|
RS350-384
|
|
Detector type
|
VO×Uncooled FPA
|
||
|
Pixel
|
384×288
|
384×288
|
384×288
|
|
Pixel pitch
|
12μm
|
||
|
NETD
|
≤40mk
|
||
|
Focal length
|
25mm
|
35mm
|
50mm
|
|
FOV(±5%)
|
10.6°×7.9°
|
7.5°×5.7°
|
5.3°×4.0°
|
|
Frame rate
|
50Hz
|
||
|
Focus
|
Manual
|
||
|
Screen
|
Lcos 1280×960,color lcos 1280×960 resolution
|
||
|
Out-pupil distance
|
55mm
|
||
|
Eyepiece magnification
|
10X
|
||
|
Base magnification
|
X2.3
|
X3.25
|
X4.65
|
|
Visual degree
|
Adjustable
|
||
|
Brightness/contrast
|
Adjustable
|
||
|
Polarity reversal
|
Black hot/White hot
|
||
|
Electronic zoom
|
X2 X3 X4
|
||
|
Picture in picture
|
Yes
|
||
|
Division
|
Yes
|
||
|
WIFI
|
Yes
|
||
|
Strorage
|
32G
|
||
|
Strorage method
|
Video,take photos
|
||
|
Battery type
|
Build-in lithium battery
|
||
|
Working hours
|
＞5 hours
|
||
|
Impact resistance
|
800G
|
||
|
Anti-vibration
|
2g,GB/T2423.10(iec60068-2-6)
|
||
|
Protection level
|
IPX6
|
||
|
Electromagnetic compatibility
|
Meet CE requirements
|
||
|
Humidity
|
0-95%
|
||
|
Working temp
|
-20℃～+50℃
|
||
|
Storage temp
|
-40℃～+70℃
|
||
|
Shell color
|
Black
|
||
|
Connector
|
Can be equipped with sight standard fixture (30 standard mounting ring )
|
||
|
Size
|
320×75×65mm(Without eye mask)
|
||
|
Weight
|
＜900g
|
||
|
Power imput
|
Type-C Connector(Charging,data transmission)
|
||
