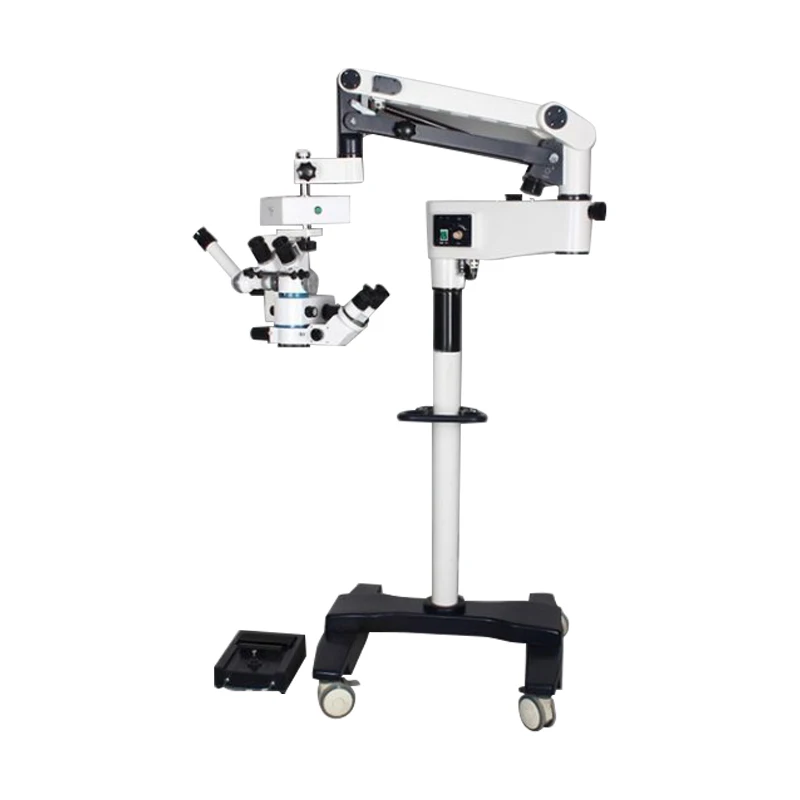

RACTOR OPTICA RO ophthalmic surgery operating microscope with CCD camera system

Shipping calculated at checkout.

Availability:

Shipping: Free Shipping in the Continental United States

Discover a new level of precision and versatility with our cutting-edge Surgical Microscope. This innovative instrument is designed to enhance the surgical experience with advanced optics and a range of features that empower surgeons to perform with confidence.

It can be used by series ophthalmic microsurgery.

More Details Photos

Specifications:

Specification	Details
Main Microscope
Zoom System	Parallel Light Five-Step Magnification
Zoom Ratio	0.4—2.5
Magnification Options	3.5X, 5.4X, 8.5X, 13.5X, 21X
Field of View Diameter	Φ68mm, Φ43mm, Φ27.5mm, Φ17.5mm, Φ11mm
Eyepiece Visual Angle	45°
Pupil Distance Adjuster	55mm - 75mm
Vice Microscope
Posture	90° with Main Microscope
Light Route	Same Light Route
Magnification Options	6X, 10X, 16X (3-Step Disposition)
Eyepiece
Main Microscope	10X/22B
Vice Microscope	12.5X/18B
Working Distance	200mm
Illumination
Coaxial Cold Light Source	6° + 0°
Illuminance	≥ 80,000Lx
Lighting Bulbs	15V/150W
Additional Features
Retinal Protection Devices	Included
X-Y Plane Mover	Range: 40mm (Resettable to Zero)
Motorized Fine Tuning System (Foot Control)	Range of Fine Focusing: 40mm
Front and Back Pitching Adjustable	Pitching Range: -5° to 10°
Maximal Spread Radius of Cross Arm	1200mm
Vertical Adjustment Range	850mm - 1350mm
Newest Design Balanced Frame	Included
CCD Camera System
Components	Beam Splitter, Digital SLR Camera Interface, CCD Video Interface, HD Video Camera
